Kreg Concealed Hinge Jig KHI-HINGE-INT

SKU: KHI-HINGE-INT

Kreg Concealed Hinge Jig KHI-HINGE-INT

Regular price £27.98 GBP
Regular price Sale price £27.98 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

The Kreg Concealed Hinge Jig KHI-HINGE-INT is the ideal tool for creating 35mm door and face frame hinge recesses. This jig is easy to set up and use with its simple toggle clamp and adjustable edge guide, allowing you to make perfect hinge recesses in no time. Plus, it fits both standard and over-lay doors and face frames for precise mounting of concealed hinges.

The Concealed Hinge Jig takes the guesswork out of installing cabinet doors using concealed hinges. This economical, easy-to-use jig ensures accurate hinge alignment, so you can install doors that fit great and work well. Plus, the Concealed Hinge Jig works with an ordinary drill and the included carbide tipped bit.

The Concealed Hinge Jig allows you to drill cup holes for concealed cabinet door hinges (sometimes called Euro hinges) using just a drill. The jig positions an included carbide-tipped bit exactly at the proper position and offset, and drills to the perfect depth every time thanks to a depth stop collar. The jig is simple to use, and it ensures that you can mount cabinet doors that fit great and work properly.

Concealed hinges are great for mounting cabinet doors because they stay out of sight, they're adjustable, and they work very well. Mounting them, though, requires drilling a large hole at a very specific position and depth. The Kreg Concealed Hinge Jig takes the guesswork out of drilling those holes, and allows you to do it with nothing more than a drill and the carbide-tipped bit that comes with the jig.

Note: A 1/16 inch bit is required to drill for hinge-mounting screws. Not included.

The Concealed Hinge Jig consists of a glass-filled nylon base with a hole that receives a drill guide. Indexing cams ensure that the jig positions the bit to drill a hole at the required offset which is dictated by each hinge and a built-in stop collar ensures that the cup depth is correct every time. There are even holes that you can use to guide a bit for hinge screw holes. The Concealed Hinge Jig comes with a high-quality, carbide tipped bit to ensure great results.

The Concealed Hinge Jig is designed to be intuitive for beginners to use, but robust enough for professionals. Just pick out your hinges, look up a few basic mounting instructions that come with them, and then set up the Concealed Hinge Jig by adjusting a pair of built-in cams. After that, you are set to drill hinge cup holes using any ordinary drill. Whether your installing one cabinet door or making doors for an entire kitchen, the Concealed Hinge Jig provides reliable, consistent results.

Make cabinet door installation easy! Get drill press accuracy with any hand drill.

  • Accurate hinge positioning with built-in indexing tabs
  • Repeatable results with built-in measuring scales
  • Reliable drilling with bit guide and stop collar
  • Simple to use with any drill, no special tools needed
  • Adjustable cams ensure proper hinge offset
  • Durable carbide-tipped drill bit included
  • Strong, lightweight materials for easy handling

Specs

Hinge Compatibility

35mm cup-style concealed hinges

Construction

Durable glass-filled nylon

Hinge Offset

3mm, 4mm, 5mm, 6mm

Hinge Offset from Door End

2 inch (50mm) to unlimited

Included Drill Bit

Four-cutter carbide-tipped with stop collar

In The Box

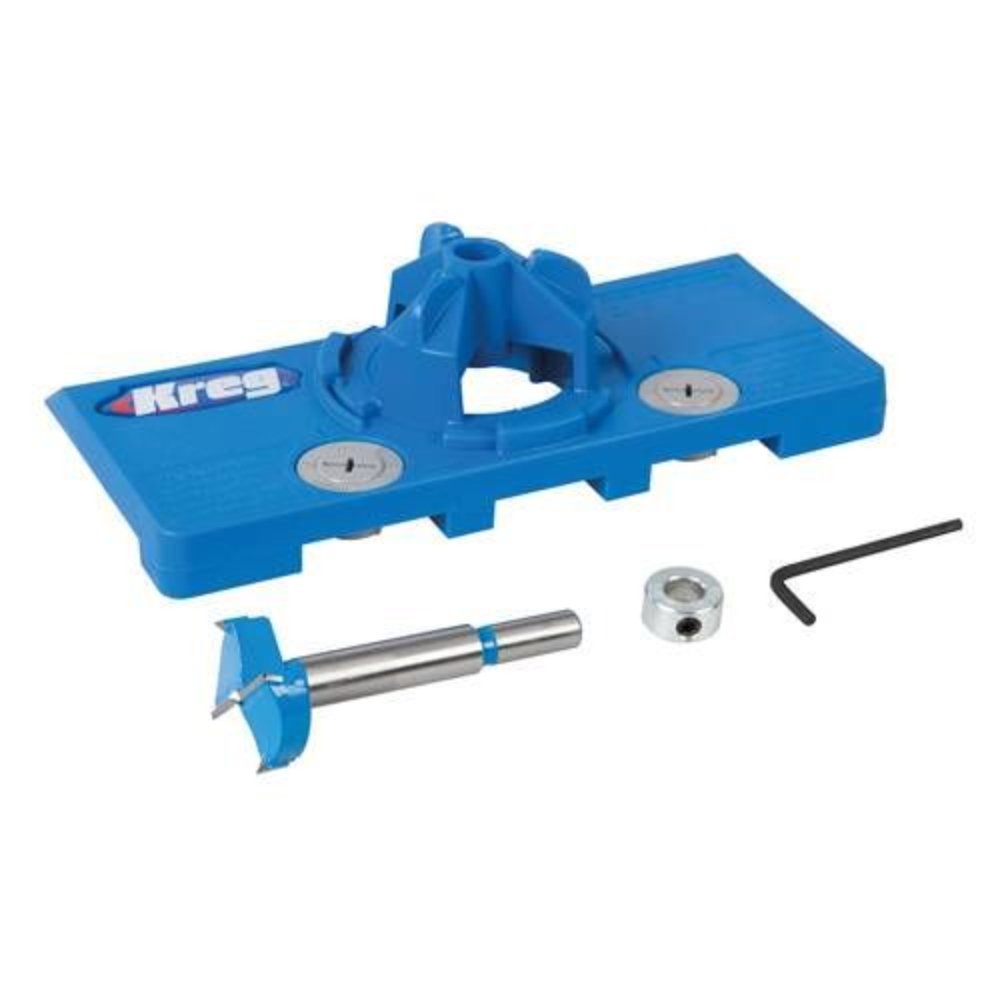

(1) jig base with index cams
(1) drill guide
(1) 35mm carbide-tipped drill bit
(1) stop collar with Hex wrench
owners manual
