Kreg Insert Plate Undrilled PRS4038

Solid, Flat, and Perfectly Level Mounting Surface

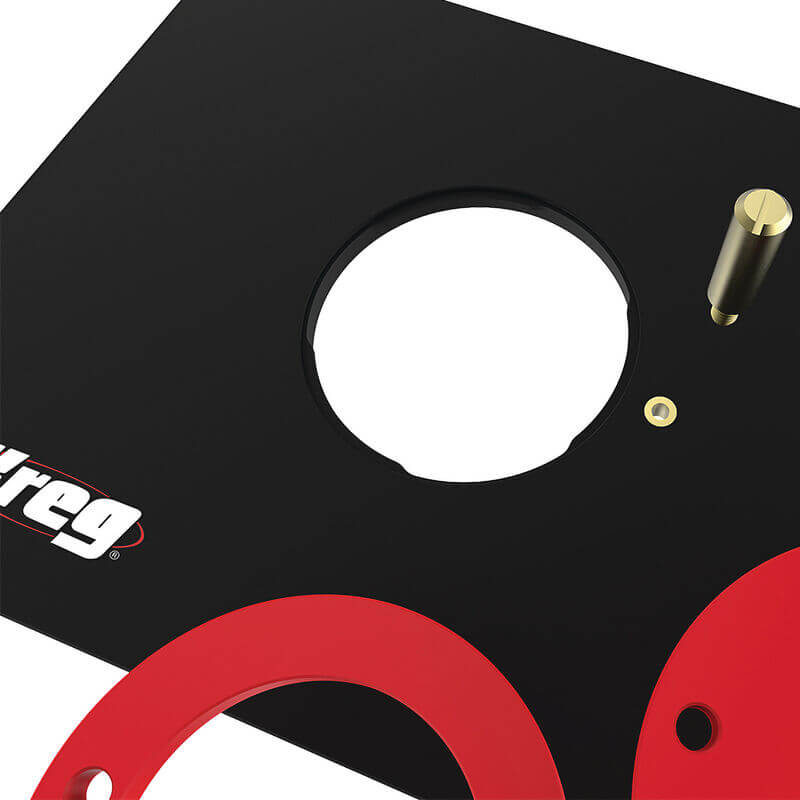

This rugged ³/_{8 inch} thick (9mm) phenolic insert plate is designed to provide a solid, flat, and perfectly level mounting surface for your router. Measuring 9¹/_{4 inch} x 11.³/_{4 inch} (235mm x 298mm), it will accept almost any router (even large, heavy models) with ease.

No Pre-drilled Mounting Holes

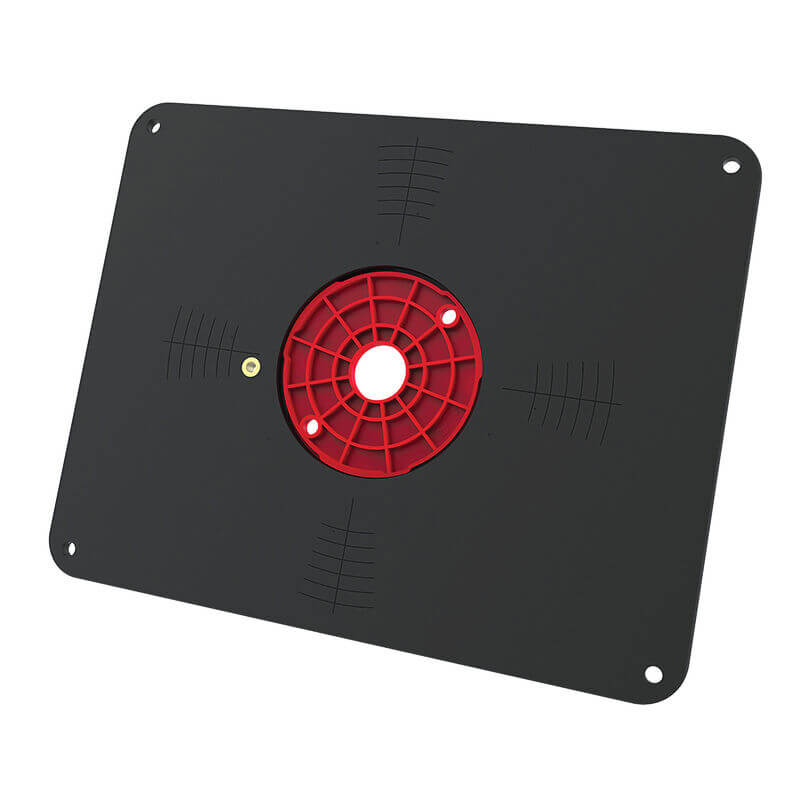

This plate comes without any pre-drilled mounting holes. Alignment marks engraved on the underside make it easy to centre and mount any router using the detailed instructions that are included with the plate.

Level-Loc Reducing Rings

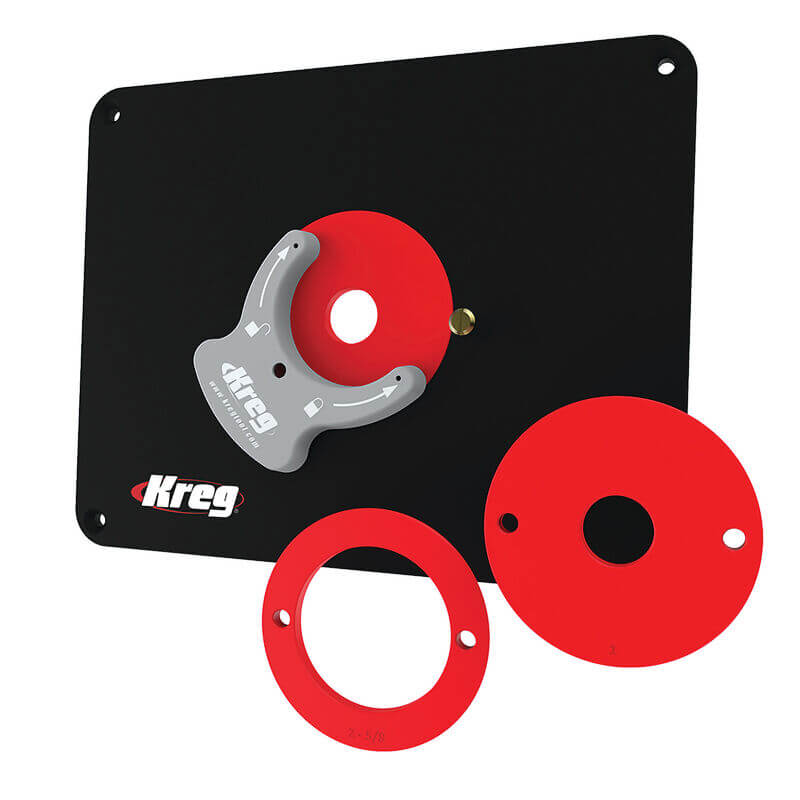

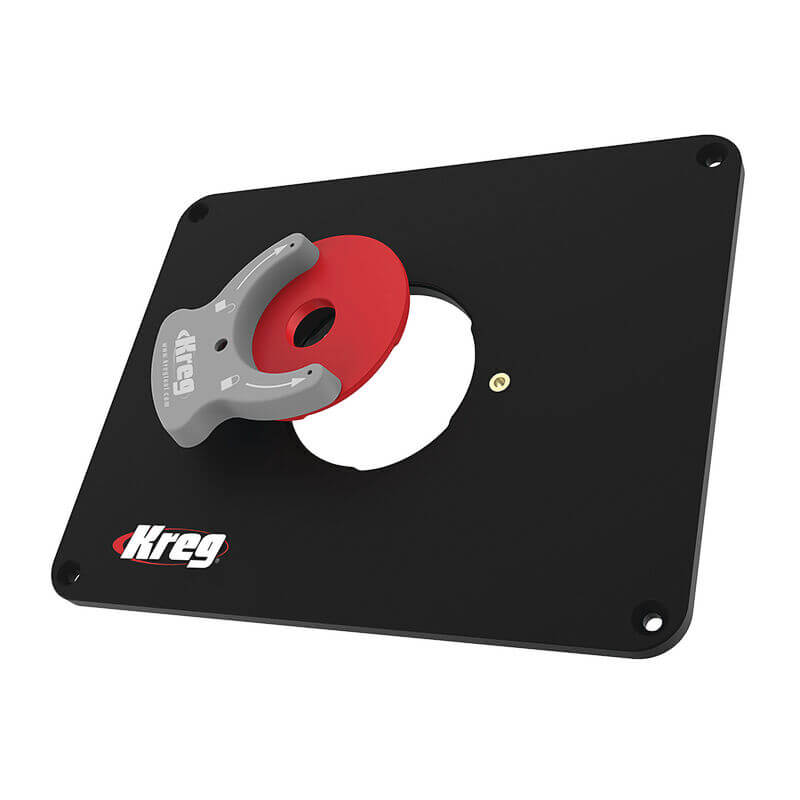

The plate is equipped with our Level-Loc Reducing Rings that allow you to easily change the size of the opening around the router bit. These rings simply twist into place using an included ring wrench to lock in level and flush with the plate surface. The plate comes with three Level-Loc Rings: 1 inch (25mm), 1.³/_{16 inch} (30mm) for use with universal-style guide bushings, and 2.⁵/_{8 inch} (67mm).

Drilling holes for your router insert plate, view video here

Un-drilled and Pre-drilled Plates
The Precision Router Table Insert Plate is available in three versions, so you can choose the one that best suits your needs.

• Un-drilled: This plate comes without any pre-drilled mounting holes. Alignment marks engraved on the underside make it easy to centre and mount any router using the detailed instructions that are included with the plate.
• Pre-drilled for Triton: This plate comes with pre-drilled holes and mounting hardware to fit Triton M0F001 and TRA001 Routers. With modification, the hole pattern also works with the Porter-Cable 7500 Series.
• Pre-drilled for Porter-Cable and Bosch: This plate comes with pre-drilled holes and mounting hardware to fit the Porter-Cable 690 and 890 Series, along with the Bosch 1617.
