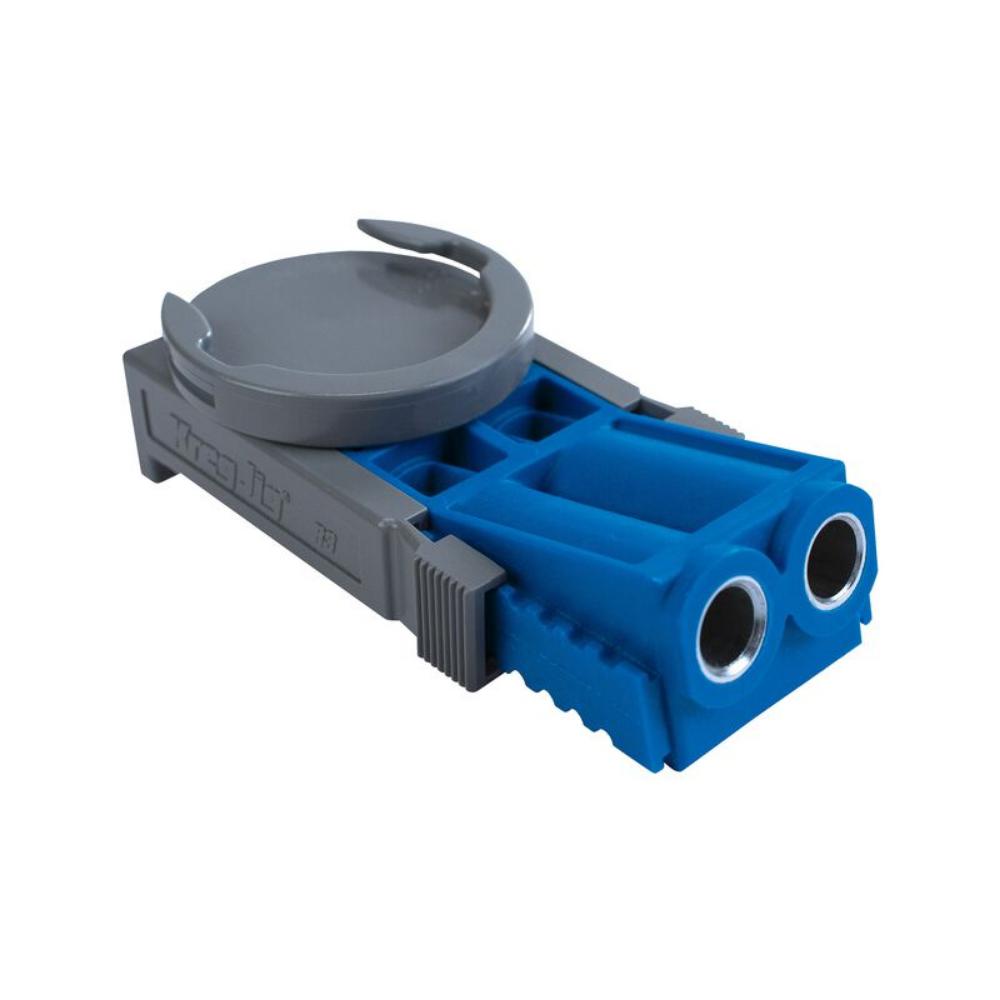

Kreg Jig R3 Pocket Hole Jig

With the Kreg Jig R3, you can build bookcases, shelves, and storage projects for your home. It's also great for creating custom built-ins, and countless other home improvement projects. Plus, the Kreg Jig R3 can be used to make lasting repairs around your home because it is portable.

Clamp Pad Adaptor
The Kreg Jig R3 includes a Clamp Pad Adaptor, which allows the R3 to be easily secured to your work piece using any standard bar clamp, C-clamp, or Kreg Face Clamp. For faster and more repeatable pocket holes, choose a Kreg Face Clamp.

Dual Positioning Sliders
Dual positioning sliders help you properly set your jig based on the thickness of the material you are working with. Simply depress the button on the side of the jig and move the sliders so your material thickness is aligned with the arrow on the jig body. It’s that easy!

Glass-Reinforced Nylon Body
The blue body of every Kreg Pocket-Hole Jig is made from a heavy-duty, glass-reinforced nylon. This composite material offers the resiliency and flexibility you need without sacrificing the strength and durability Kreg customers have come to expect.

Superior Angle
Unlike competing jigs with a shallower angle of approach, the Kreg Pocket-Hole Jig R3 features an optimized drilling angle specifically designed to increase driving efficiency and minimize the overall size of the pocket hole. The result is a compact pocket hole, less than 1.1/2 inch in size.

Wood-Chip Relief
Sometimes the simplest things are the easiest to overlook. The R3 includes one wood-chip relief hole for every drill guide hole, designed to keep the drill bit clear of excess wood chips, minimizing drill-torque, increasing the longevity of your drill bits, and allowing you to complete a perfect pocket hole in just one plunge.

Hardened-Steel Core
Kreg drill guides are subject to direct contact with the drill bit every time a pocket hole is created. The core of every Pocket-Hole Jig R3 features hardened-steel, which carries a lifetime guarantee. The R3’s core shrouds the bit and supports the workpiece through 100% of the drill-stroke. The end result is minimal bit deflection, reduced tear-out, and a clean, pluggable pocket hole fit for finish work.

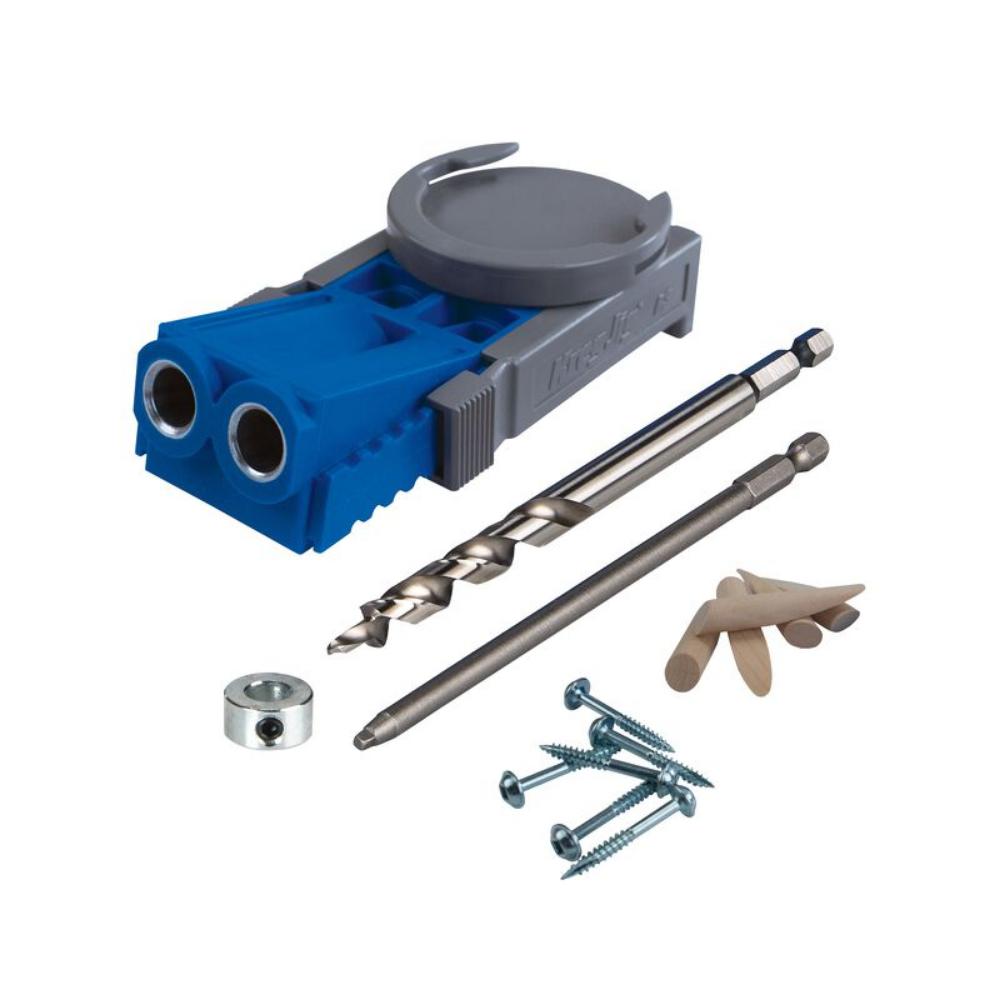

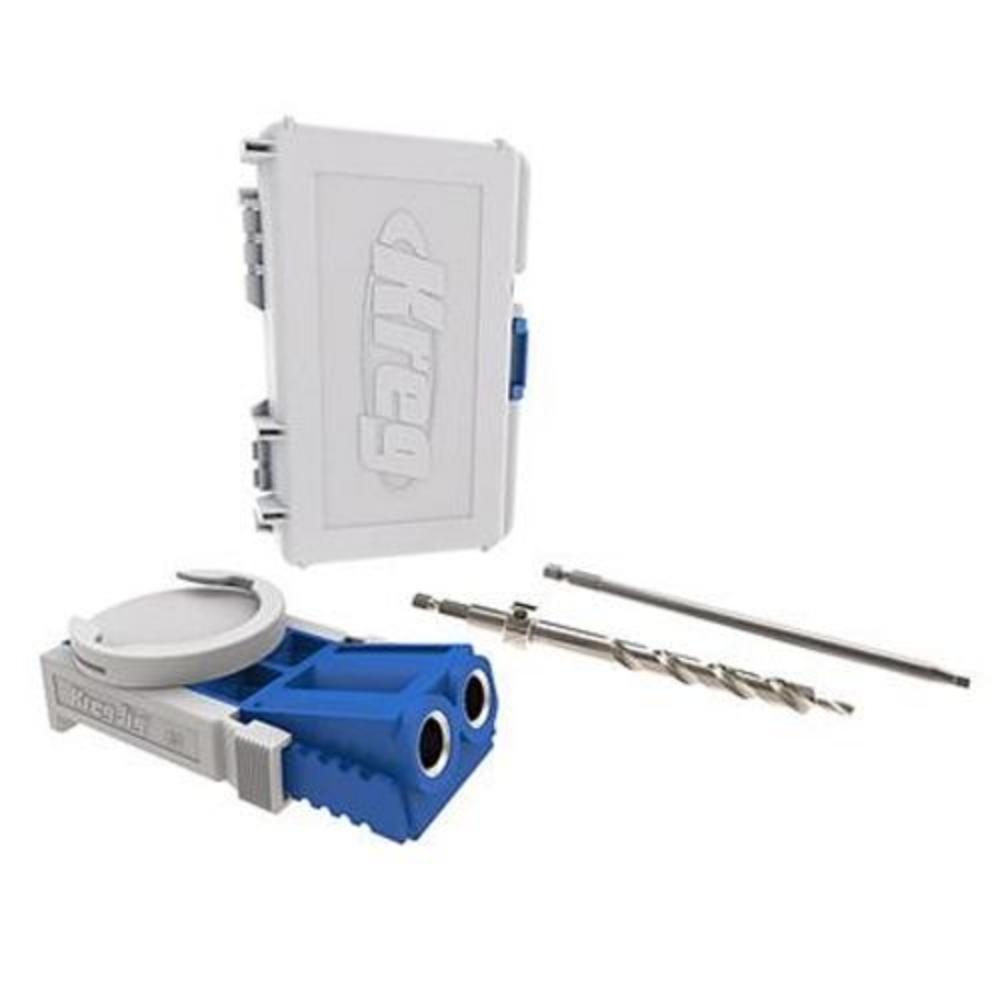

Secure to the work piece with Kreg Face Clamp, any standard bar clamp or C-clamp. Includes Kreg Jig R3, Clamp Pad Adaptor, Stepped Drill Bit, 152 mm (6 inch) Driver Bit, Depth Collar, Allen Wrench, Starter Screw Set, instruction manual and carry case. 12.7-38 mm (1/2 inch to 1.1/2 inch) capacity.
