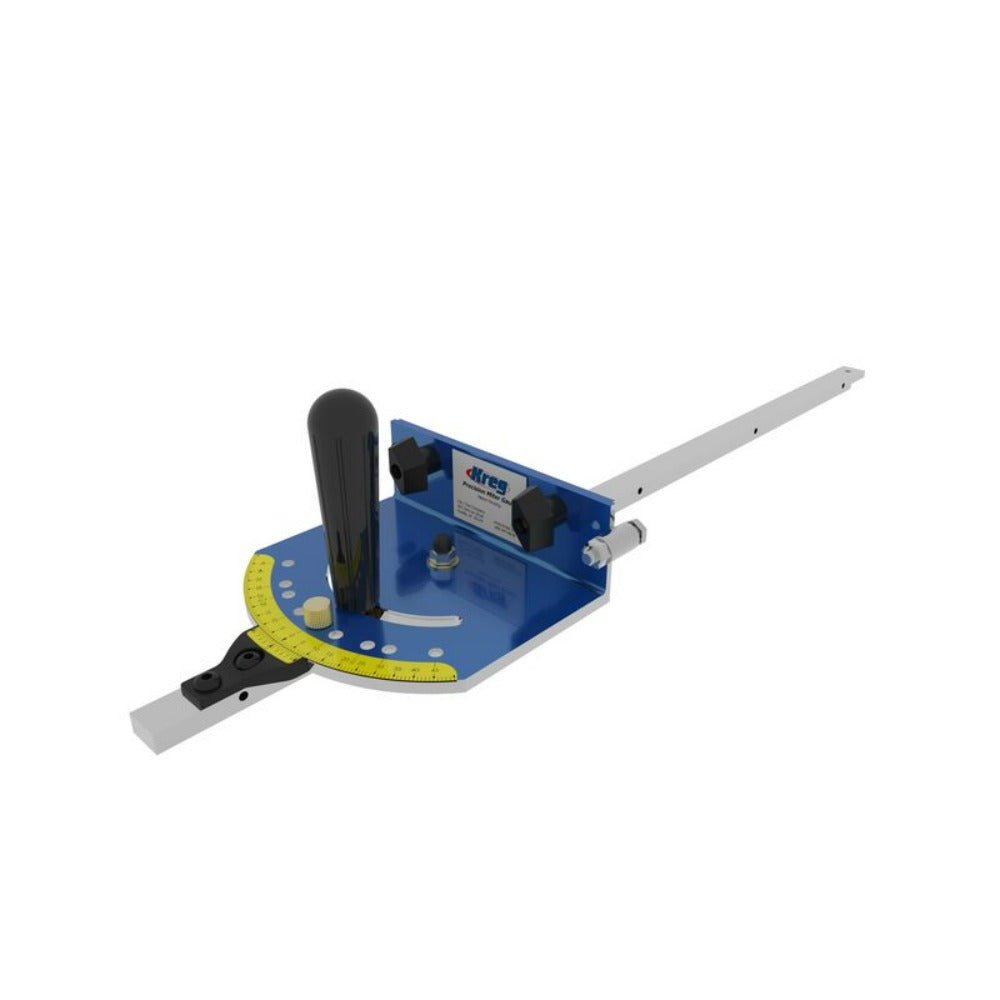

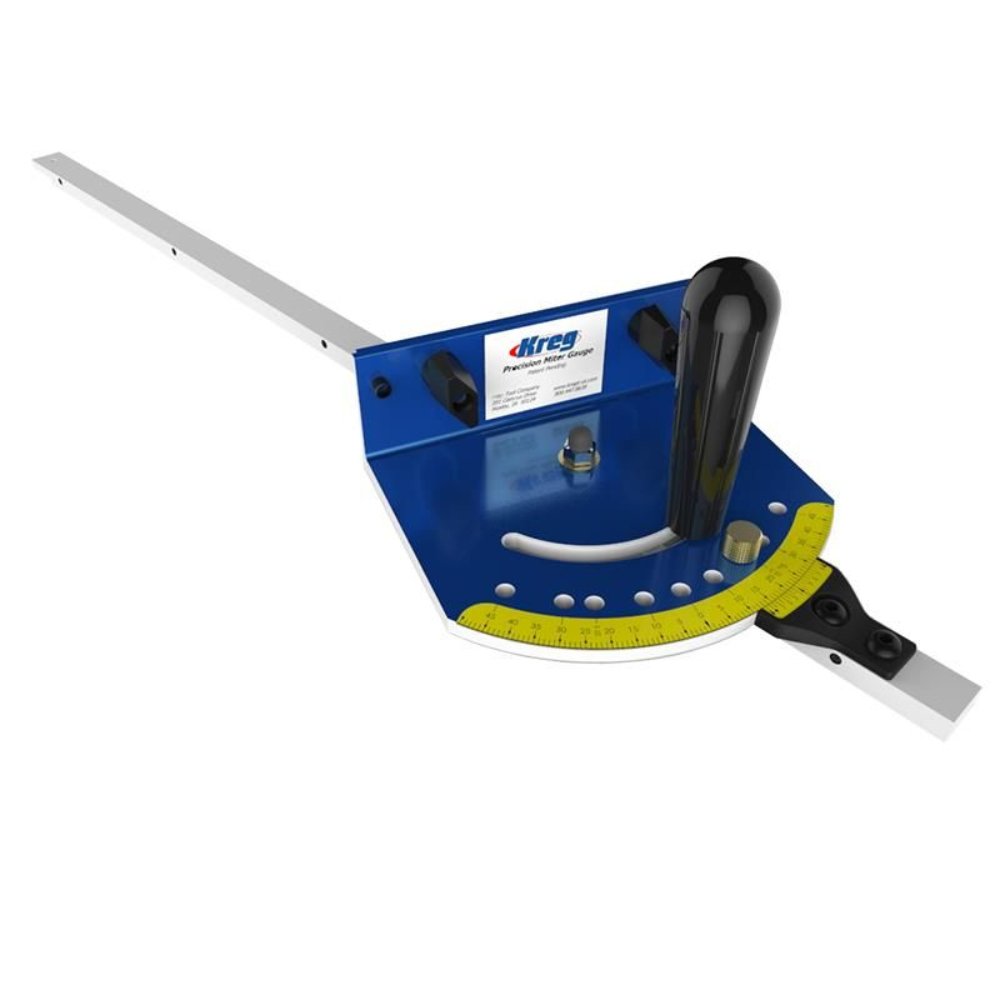

Kreg Precision Miter Gauge KMS7101

Precision Mitre Gauge System

Why spend your time calibrating a mitre gauge when you can get factory-calibrated accuracy right out of the box? Our Precision Mitre Gauge requires no calibrating, and features positive stops at 0 degree, 10 degrees, 22.1/2 degrees, 30 degree and 45 degree, making it easy to cut mitres quickly.

Of course, when you do want to cut a more complicated angle, the easy-to-use Vernier scale allows for fast adjustments to 10th of a degree.

Perfect Mitres, Fast!

Precision is the name of the game for this CNC-milled mitre gauge. We build accuracy into every feature of this from the adjustable mitre bar to the easy-to-use, incredibly accurate Vernier scale. With all of its great features, this mitre& gauge will give you better, more accurate cuts to ensure project success.

No Play in the Mitre Slot

Our extremely straight 24 inch (610mm) anodised aluminium bar is 3/8 inch (9.5mm) thick by 3/4 inch (19mm) wide, and features five bar adjusters that you can adjust to eliminate play in the mitres lot with the simple turn of a screw driver.

Specs

T-Slot Bar

24 inch (610mm) long
3/8 inch (9.5mm) tall
3/4 inch (19mm) wide

Positive Stops

0 degree, 10 degrees, 22¹/₂ degree, 30 degrees and 45 degrees

Vernier Scale

Adjusts to ¹/₁₀^th of a degree

Finish

Anodised for easy clean-up

Calibration

Factory-calibrated; perfect right out of the box

Weight

2.95kg (6.5 lbs.)

Includes

All necessary hardware and owners manual
