Kreg Precision Mitre Gauge SystemSKU: KMS7102

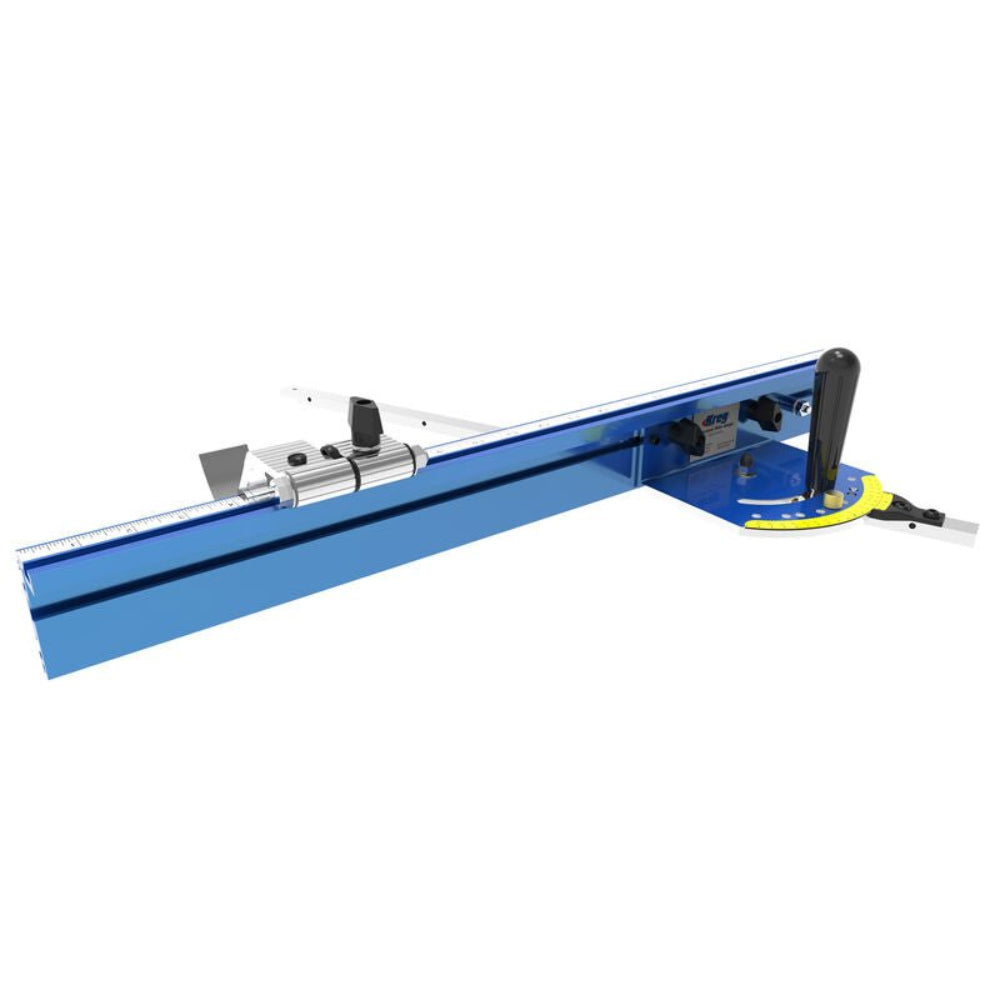

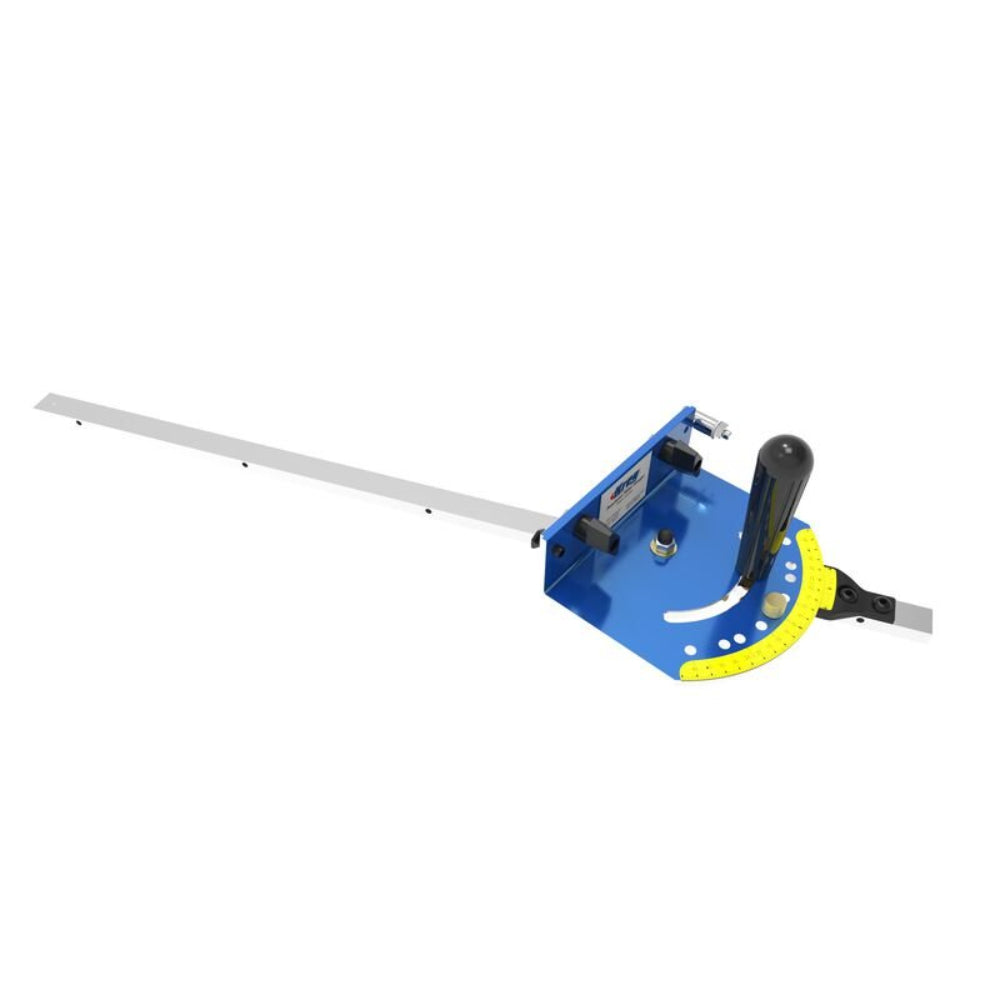

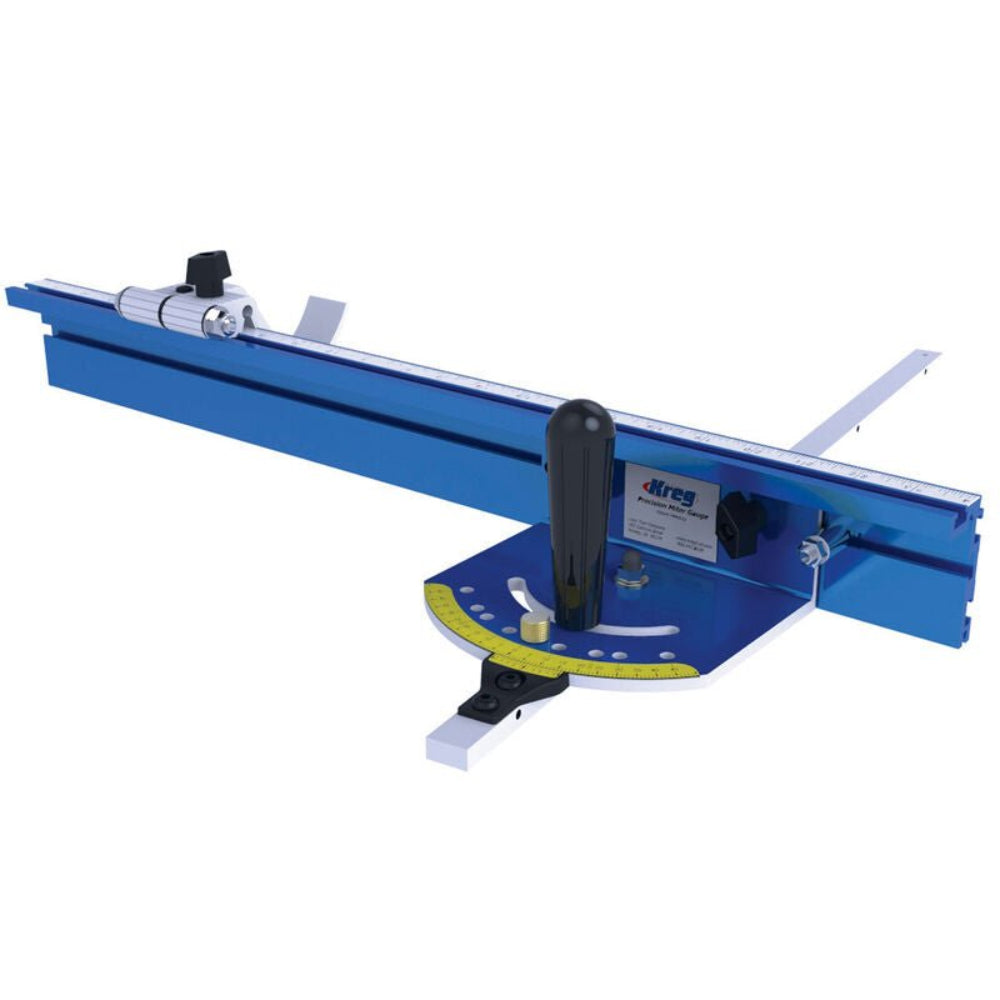

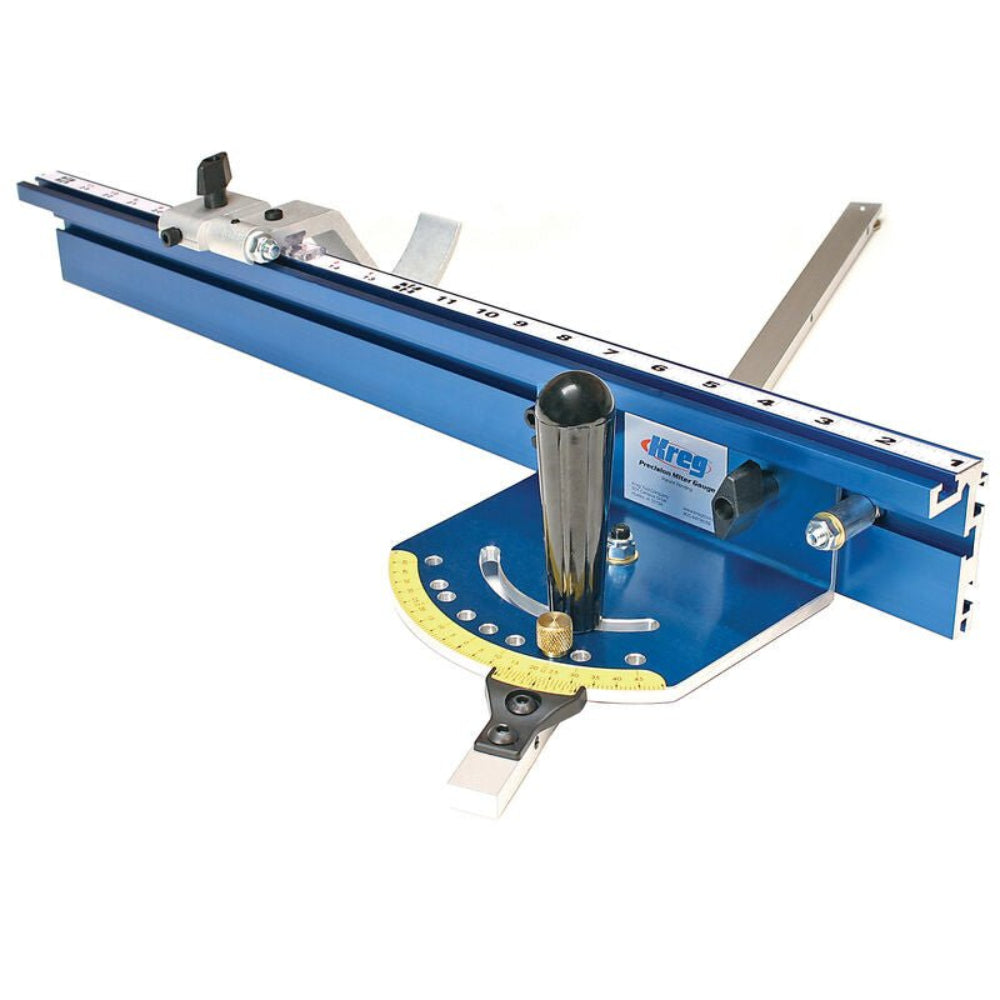

Kreg Precision Mitre Gauge System
One mitre gauge with everything you need for accuracy
Why spend your time calibrating a mitre gauge when you can get amazing accuracy right out of the box? Our Precision Mitre Gauge System requires no calibrating, and features positive stops at 0, 10, 22.1/2, 30 and 45 degrees to make it easy to cut accurate mitres quickly.

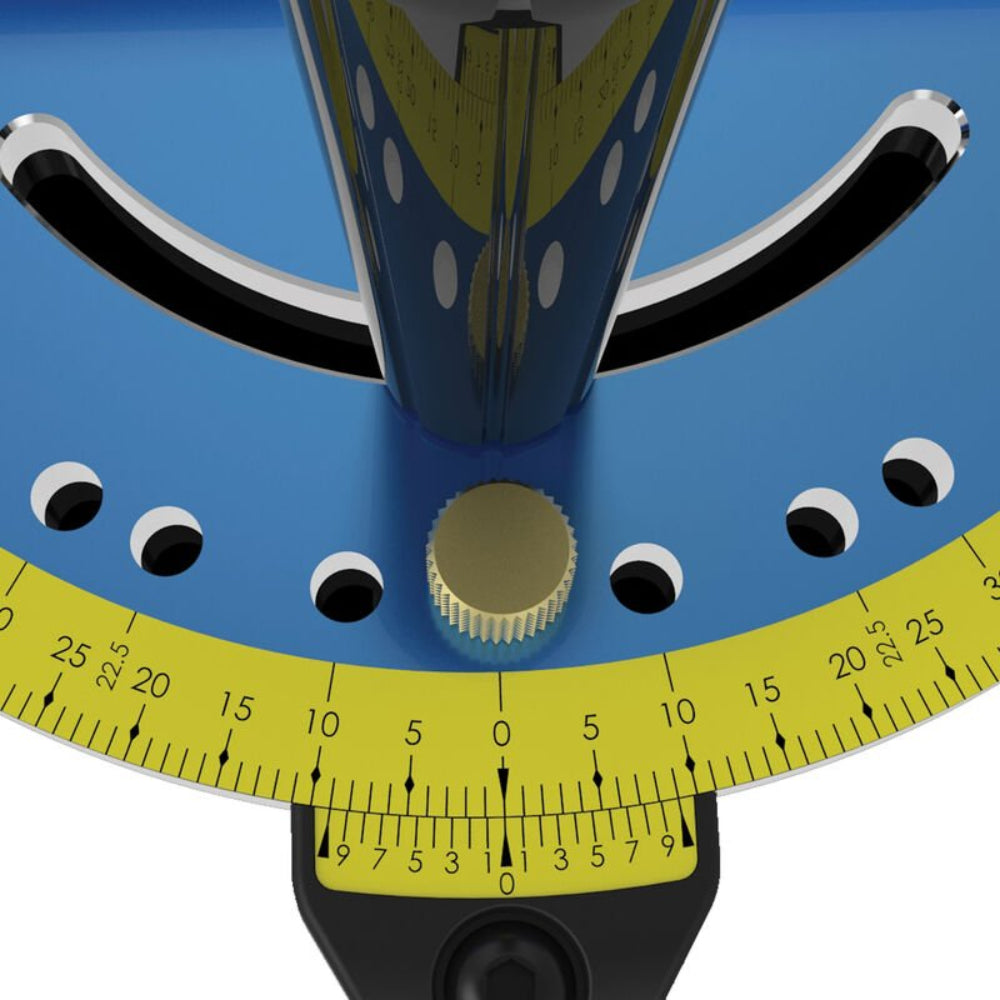

Of course, when you do want to cut a more complicated angle, the easy-to-use Vernier scale allows for fast adjustments to 1/10th of a degree. Plus, the Precision Mitre Gauge System offers a long, anodized-aluminium fence and stop system that let you easily make accurate, repeatable cuts.
Perfect Mitres, Fast!
Precision is the name of the game for this CNC-milled mitre gauge. We worked to build accuracy into every feature of this product, from the rugged aluminium fence, to the solid yet versatile Swing Stop, to the easy-to-use yet amazingly accurate Vernier scale. With all of its great features, this mitre gauge will give you better, more accurate cuts to ensure project success.

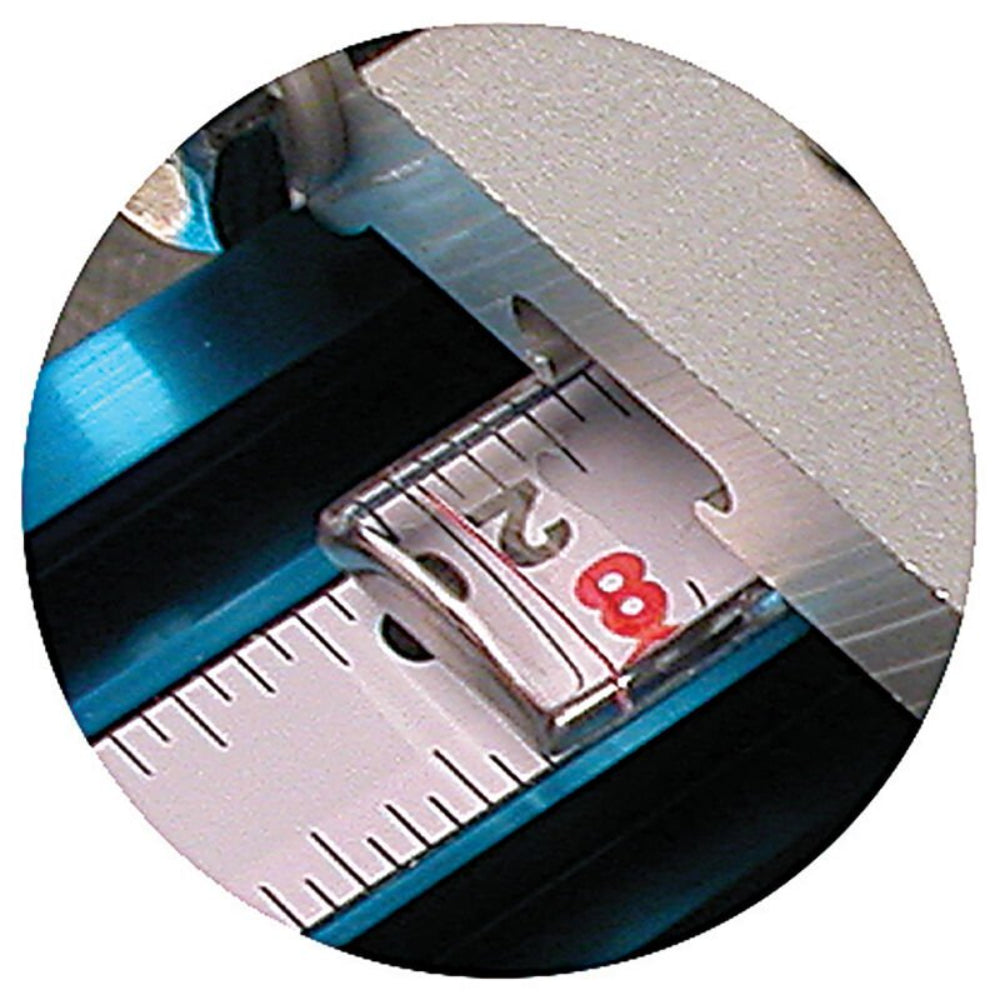

Precision Lens Cursor
Similar to the type of lens found on a quality table saw rip fence, the clear lens features a high-visibility red line that makes it easy to set the Swing Stop for precise cuts, time after time.

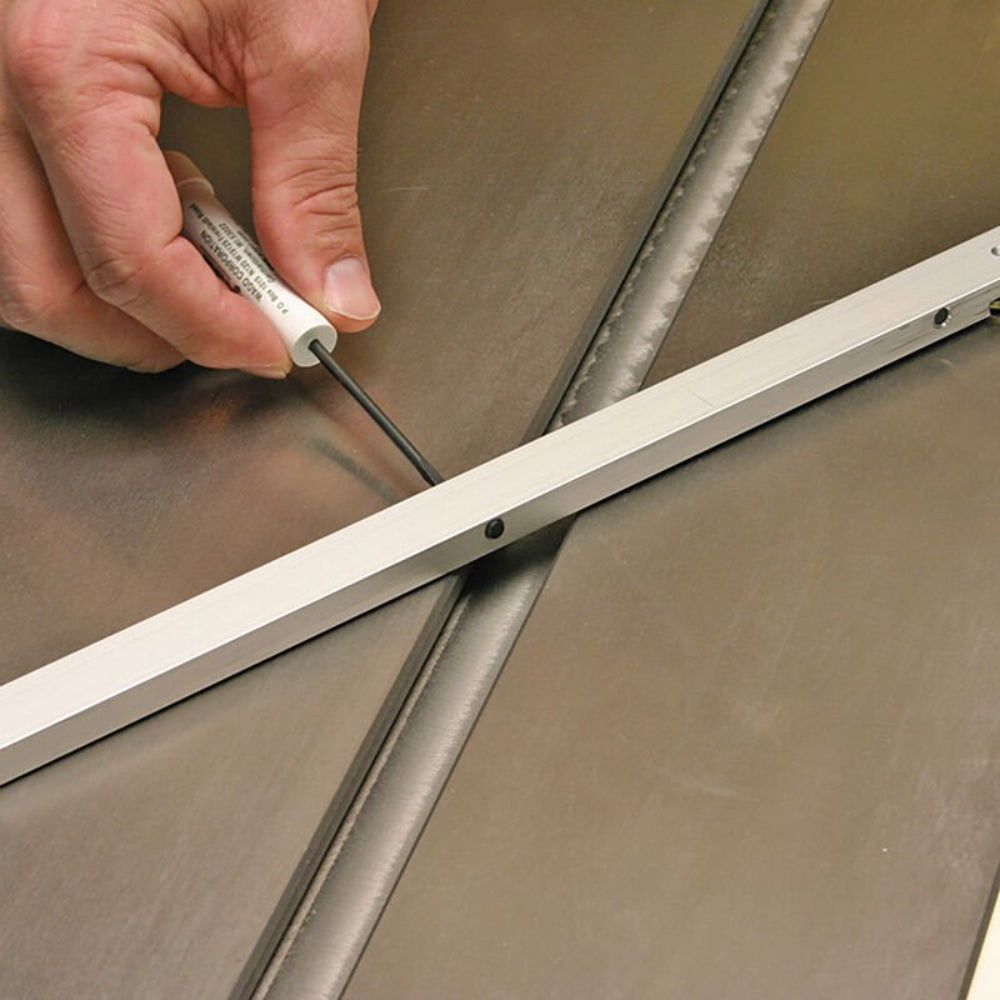

No Play in the Mitre Slot
Our extremely straight 24 inch (610mm) anodized-aluminium bar is 3/8 inch (9.5mm) thick by 3/4 inch (19mm) wide, and features five bar adjusters that you can use to eliminate "play" in the mitre slot with the turn of a screw driver.
The Swing Stop slides effortlessly along the fence of the Precision Mitre Gauge and locks securely into place with the turn of a knob. It also features a curved foot that lets you easily swing the stop temporarily out of the way without having to remove it. That means you can quickly square one end of a board, flip it around, and then cut it to final length without ever moving the stop.
Add a Versatile Fence
The curved foot of the Swing Stop can be used as its "break-away" design allows you to add a versatile, heavy-duty fence to your Mitre Gauge.
