Kreg Precision Trak & Stop Kit Metric KMS8000M

Take the guesswork and your tape measure and pencil out of cutting wood to length. Our Precision Trak and Stop Kit allows you to turn a mitre saw into a precise cutting system. Simply position the stop at the dimensions you'd like to cut using the precision lens cursor, place the board against the stop, and cut to that exact length every time. You build the support wings out of plywood (or another sheet material), and then add the Trak. Outfitting your saw to cut perfectly-sized work pieces couldn't be simpler!

Perfect for a Variety of Applications
The most common setup for the Precision Trak and Stop Kit is with a mitre saw, but many woodworkers find it handy to add to their radial arm saw or drill press. No matter where you use the Precision Trak and Stop Kit, you'll find it much faster and accurate than any other wood-cutting method.

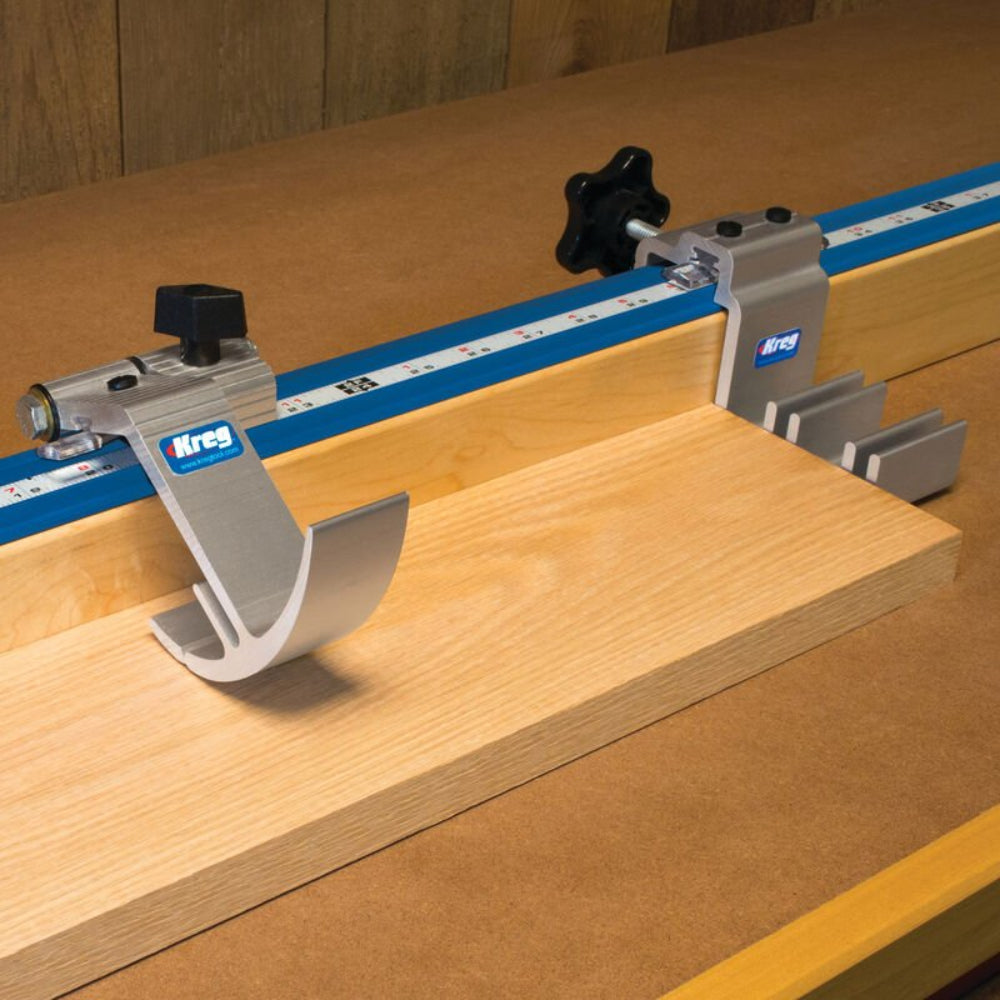

Production Stop
Designed to stand up to the rigors of repetitive cuts in an industrial environment, the ion Stop drops onto the top of the fence and features dual lens cursors for convenient use on either side of the blade.

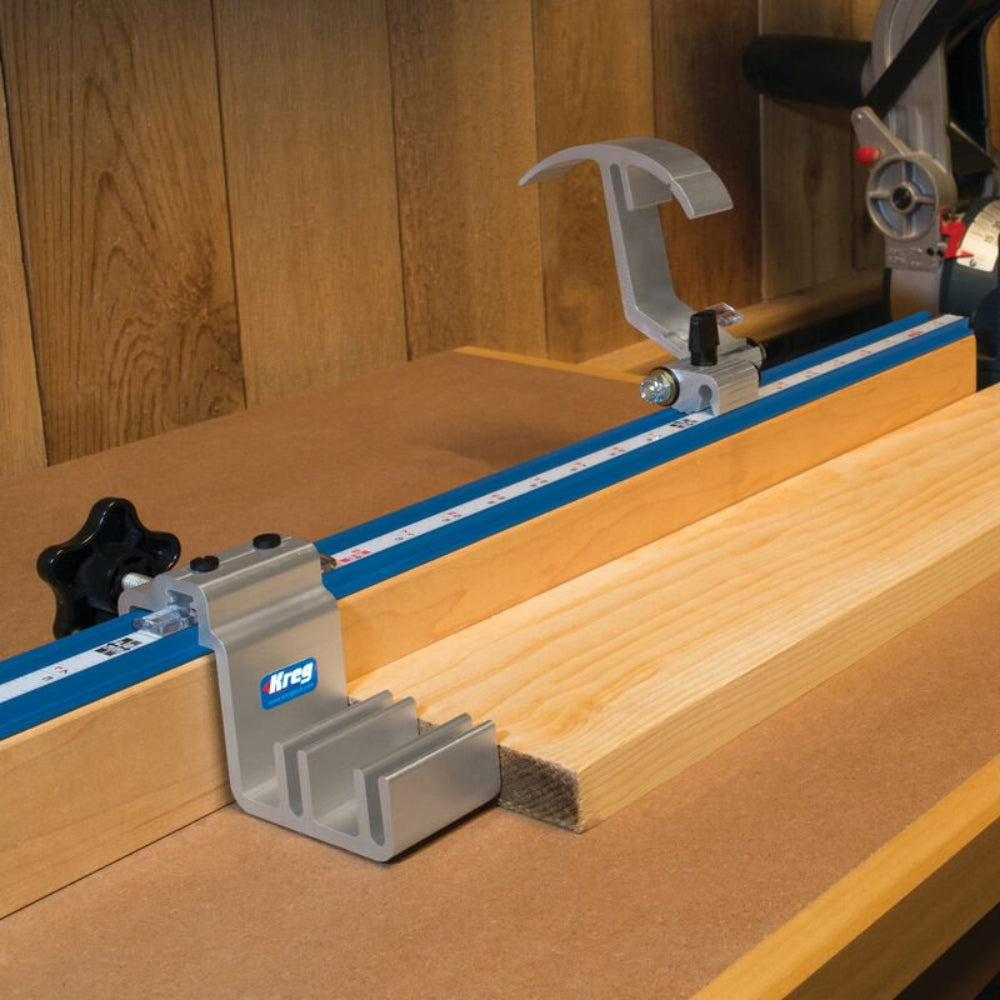

Swing Stop

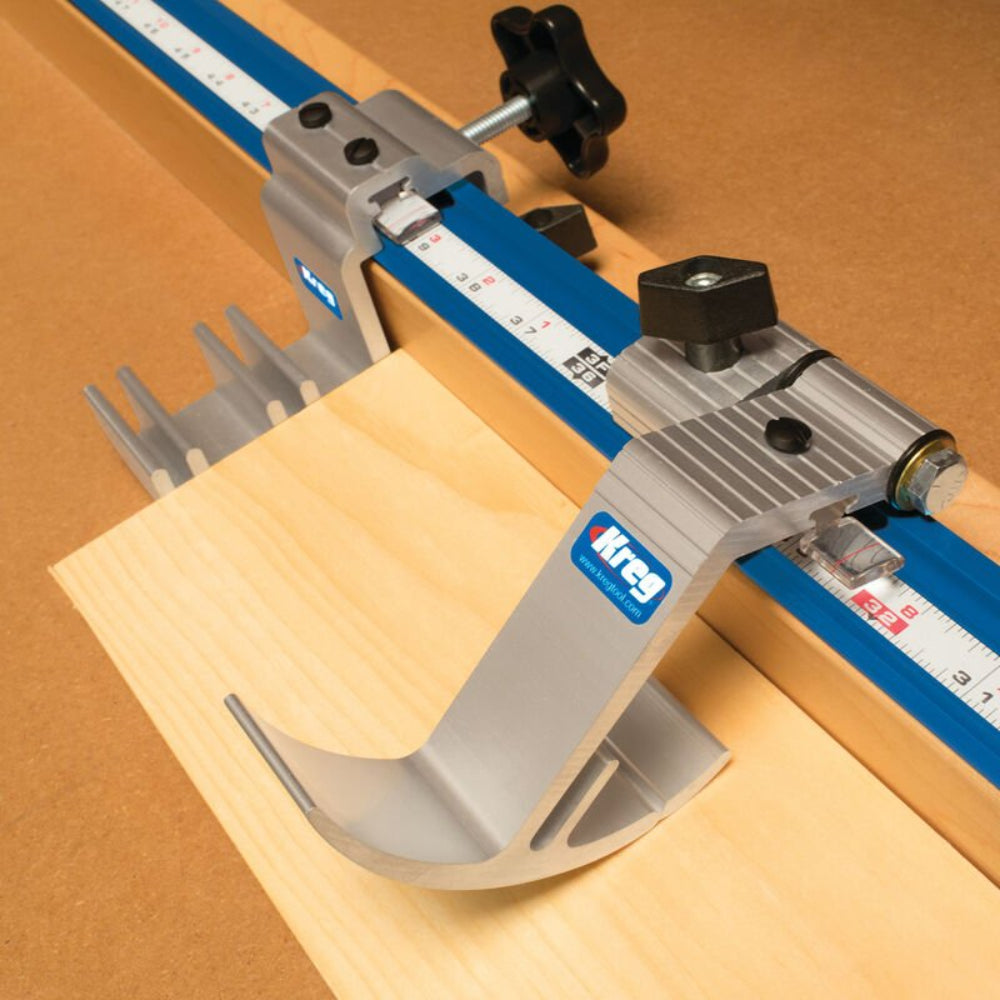

The Swing Stop gives you a precise measurement when you need it and swings out of the way when you don't Simply push a board into the curved face of the stop to push it temporarily up out of the way, or swing the stop up. Like the ion Stop, it features a Precision Lens Cursor for fast, pinpoint positioning.

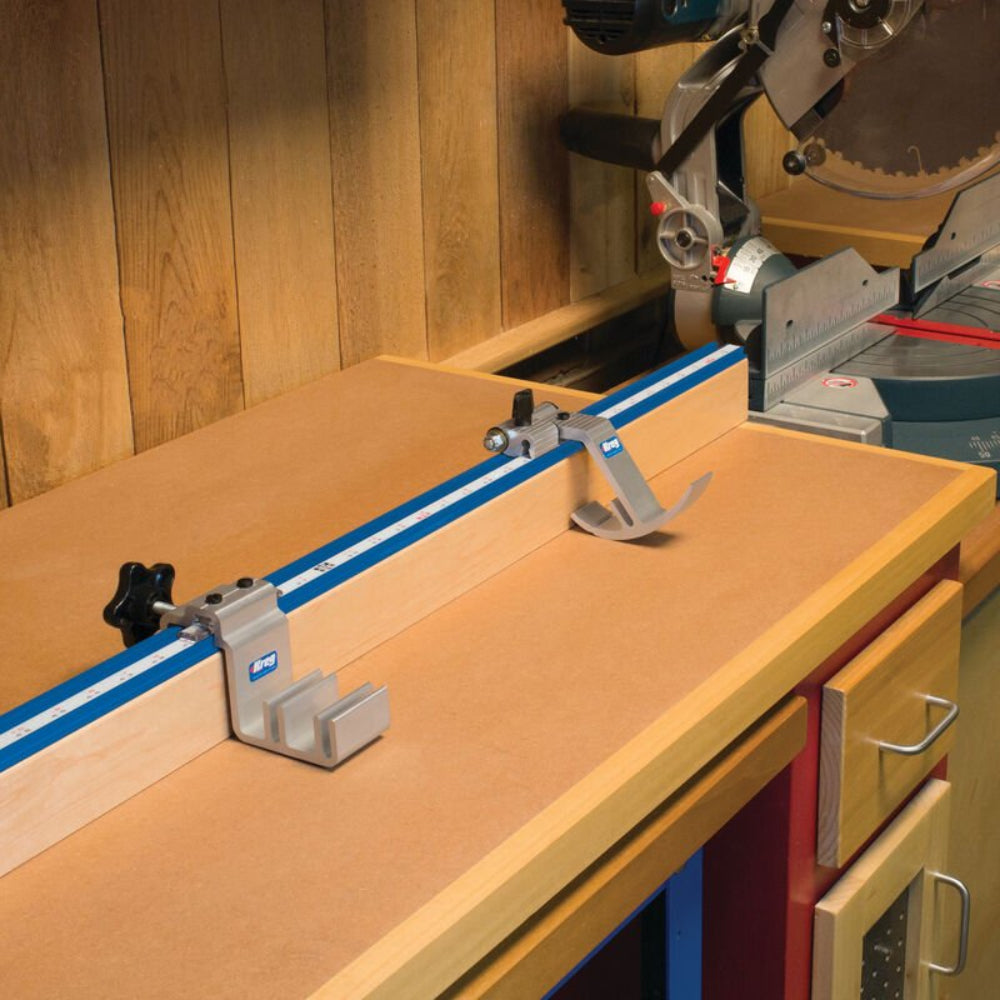

Shop-Made Support Wings
Build a simple plywood or MDF box to match the height of your saw, and then add a back fence that reaches 2¹/_{4 inch} (57mm) above the saw table for the stops to glide upon. Instructions and mounting hardware for the Trak are included.

Rigid Aluminium Fence

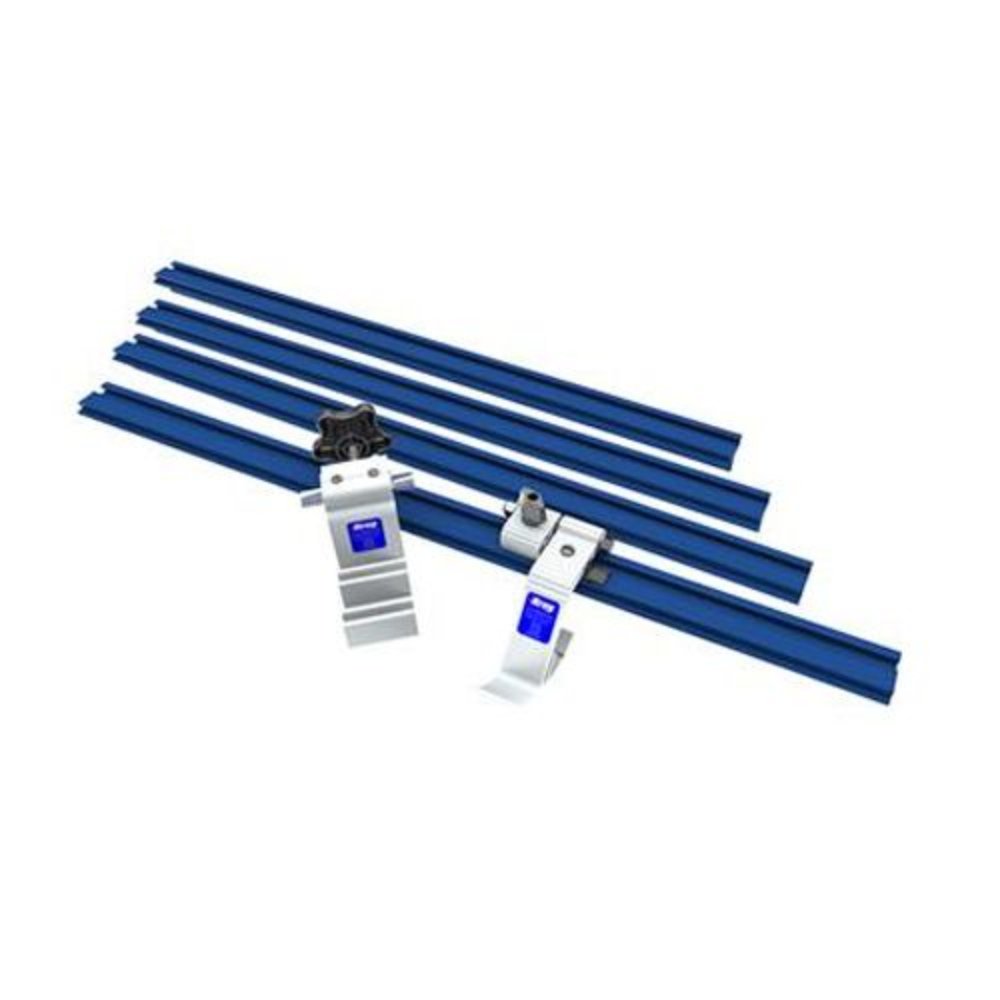

Incredibly strong and built-to-last, our anodised-aluminium Trak features an L-shaped base that makes alignment and mounting to any ³/_{4 inch} (19mm) thick board a snap. The Trak has a groove along the top to accept the included self-adhesive measuring tapes. The Trak is split into four 24 inch (610mm) long sections, giving you setup options: 48 inch (1219mm) on each side of the saw, 24 inch (610mm) on one side and 72 inch (1829mm) on the other, or all 96 inch (2438mm) on one side.

Take the guesswork out of cutting wood to length.

• Turn your mitre saw into a precise cutting system
• Adjustable stops position your work piece for repeatable, reliable results
• Precision Lens Cursor for fast, accurate positioning
• ion Stop and Swing Stop provide great results
• L-shaped base design makes alignment and mounting easy
• Includes 96 inch (2438mm) of Trak in 24 inch (610mm) long sections that can be used on the right or left side of the saw, or split between both sides
• 2 self-adhesive measuring tapes correctly measure cut lengths on both sides of the blade
