Kreg Shelf 6mm Pin JigSKU: KMA3200
Kreg Shelf 6mm Pin Jig

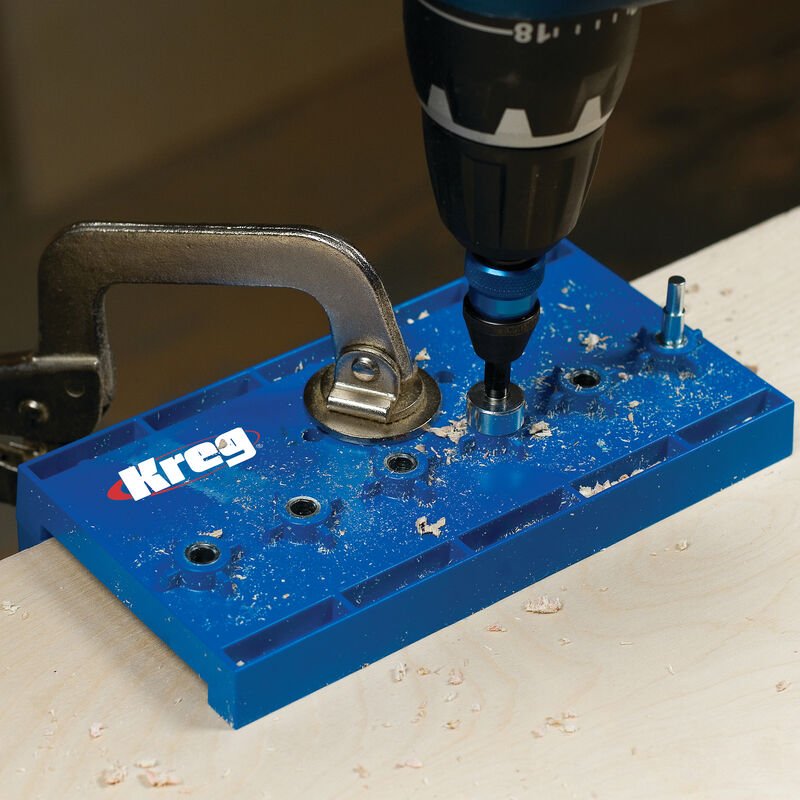

If you're adding shelf pin holes to an existing piece of furniture or building shelves from scratch, the Shelf Pin Jig is the perfect tool for the job. Unlike other shelf pin guides, the Kreg Shelf Pin Jig features hardened-steel drill guides that ensure precise and straight drilling, so you'll get level, wobble-free shelves.

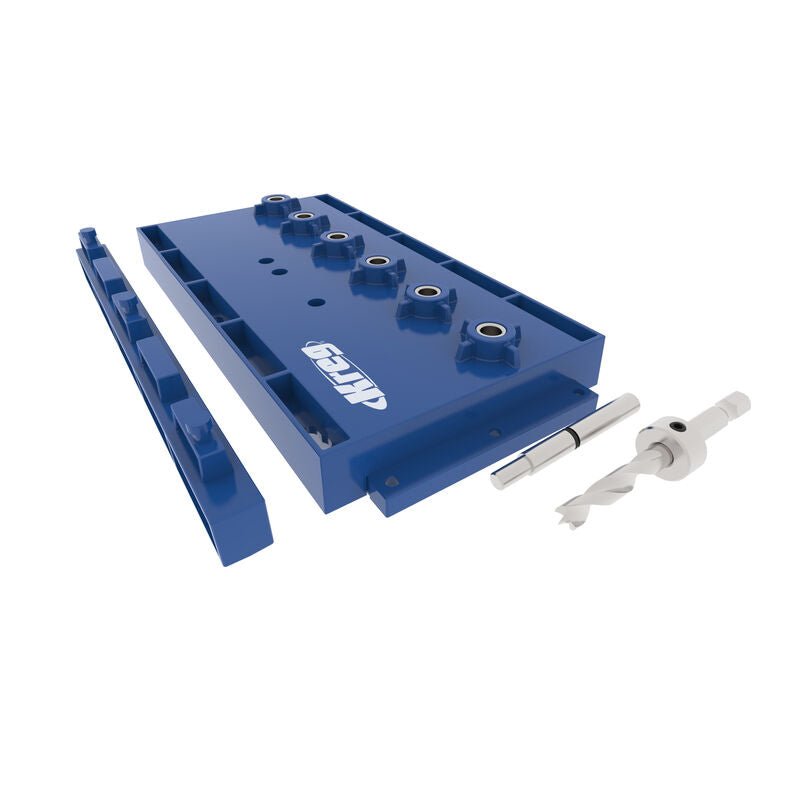

The Shelf Pin Jig also includes a dual-position, adjustable fence for custom hole placement, a locating pin for quick and accurate spacing reference, a jig extender that lets you connect multiple Shelf Pin Jigs together for high-speed ion work, and an ultra-sharp 1/4 inch (6mm) brad-point bit with depth collar that can be stored on the bottom side of the Shelf Pin Jig when not in use.
Hardened-Steel Drill Guides
Unlike thin and flexible guides, the hardened-steel drill guides of the Kreg Shelf Pin Jig ensure each and every hole you drill is perfectly straight and true. Plus, all Kreg hardened-steel drill guides come with a lifetime warranty.

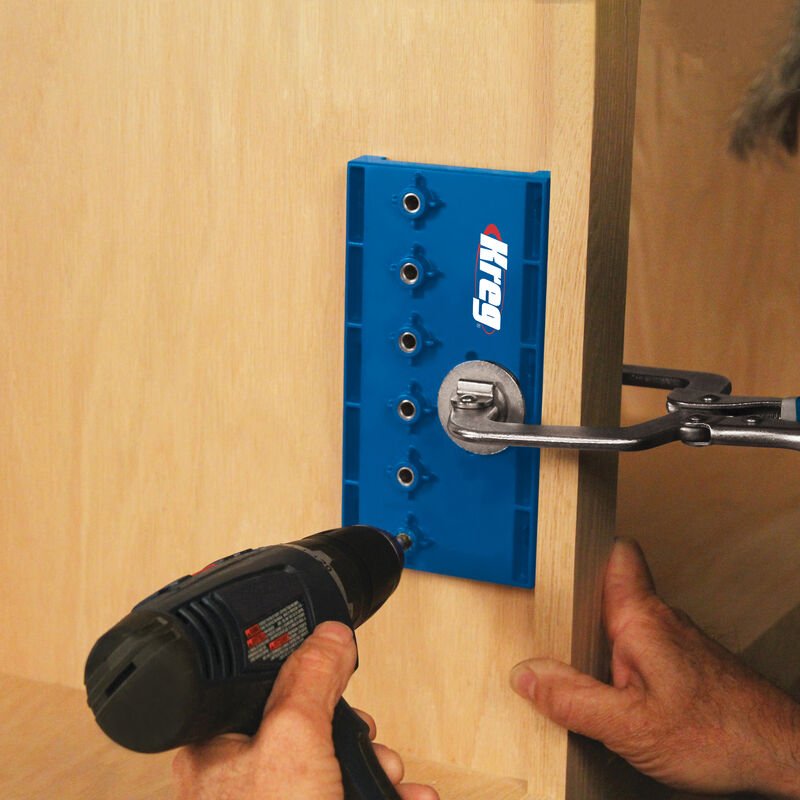

Perfect for Building or Adding Holes to Existing Furniture

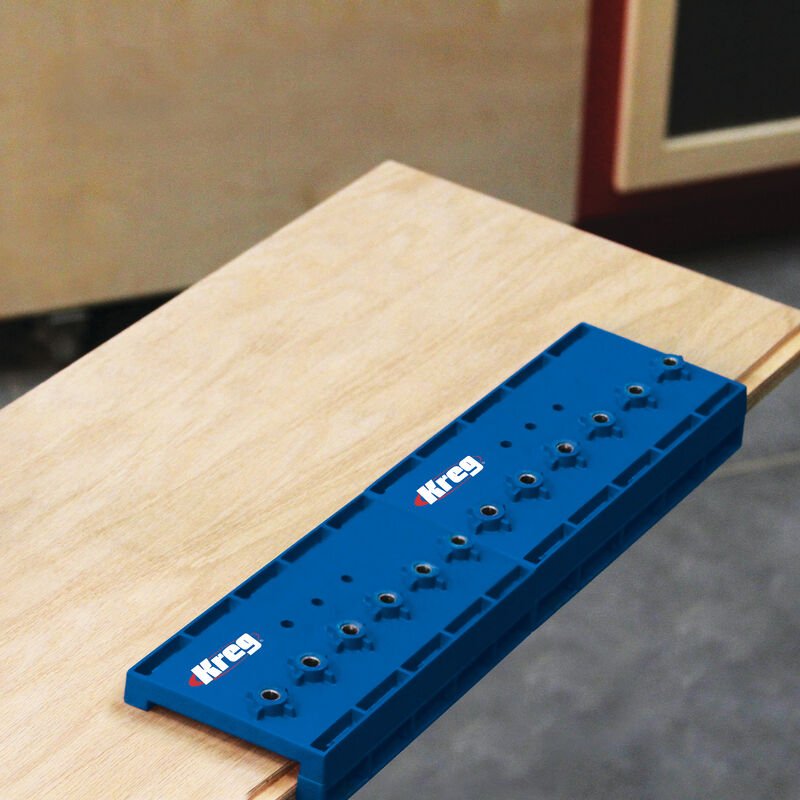

The compact size of the Shelf Pin Jig makes it perfect for adding additional shelf pin holes in existing furniture, as well as for building projects from scratch. Need more length for additional speed? Connect multiple Shelf Pin Jigs together with the included Jig Extender.
Tool-Free Quick-Switch Fence
The built-in Quick-Switch Fence allows you to set your pin holes 1 inch (25 mm) or 2 inch (50 mm) from the edges of your project. The fence can be easily removed and switched to the other side of the jig, or removed completely when you need to work inside a confined space.
Standard Hole Size and Spacing
Kreg hardened-steel drill guides are centred on standard 32mm spacing. The jig comes complete with a 1/4 inch ( 6 mm ) drill bit that fits commonly available shelf-pins.
