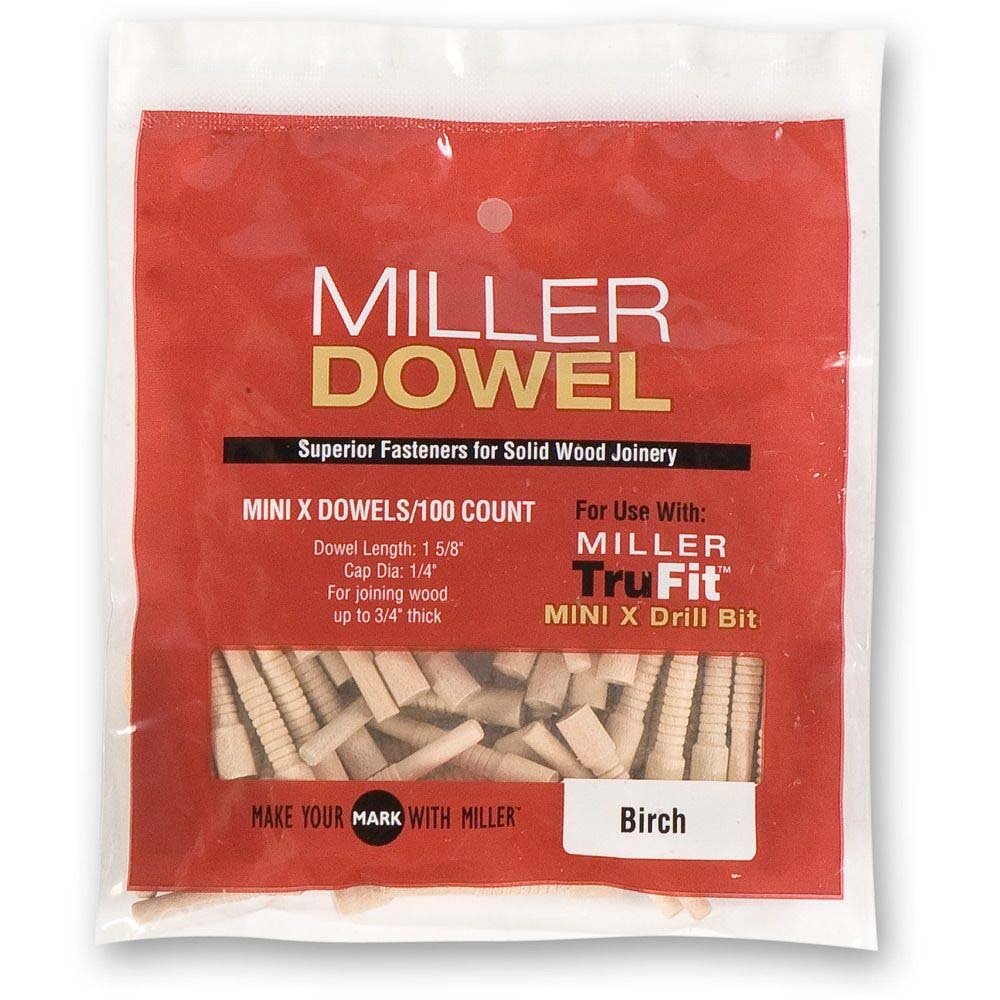

Miller Mini Dowel Joinery Kit Supplied with 100pk Birch Wood

Miller Dowel has revolutionised the speed and ease of making glued joints for your furniture and cabinets. These joints are quick, easy and precise, and sacrifice nothing in the quality of the joint produced. Available in three sizes, the starter packs are complete with a unique stepped drill bit for an exact fit and a supply of the Birch dowels.

Mini Kit (6.5 dia. x 41.5) for timber 12 - 14mm thick.

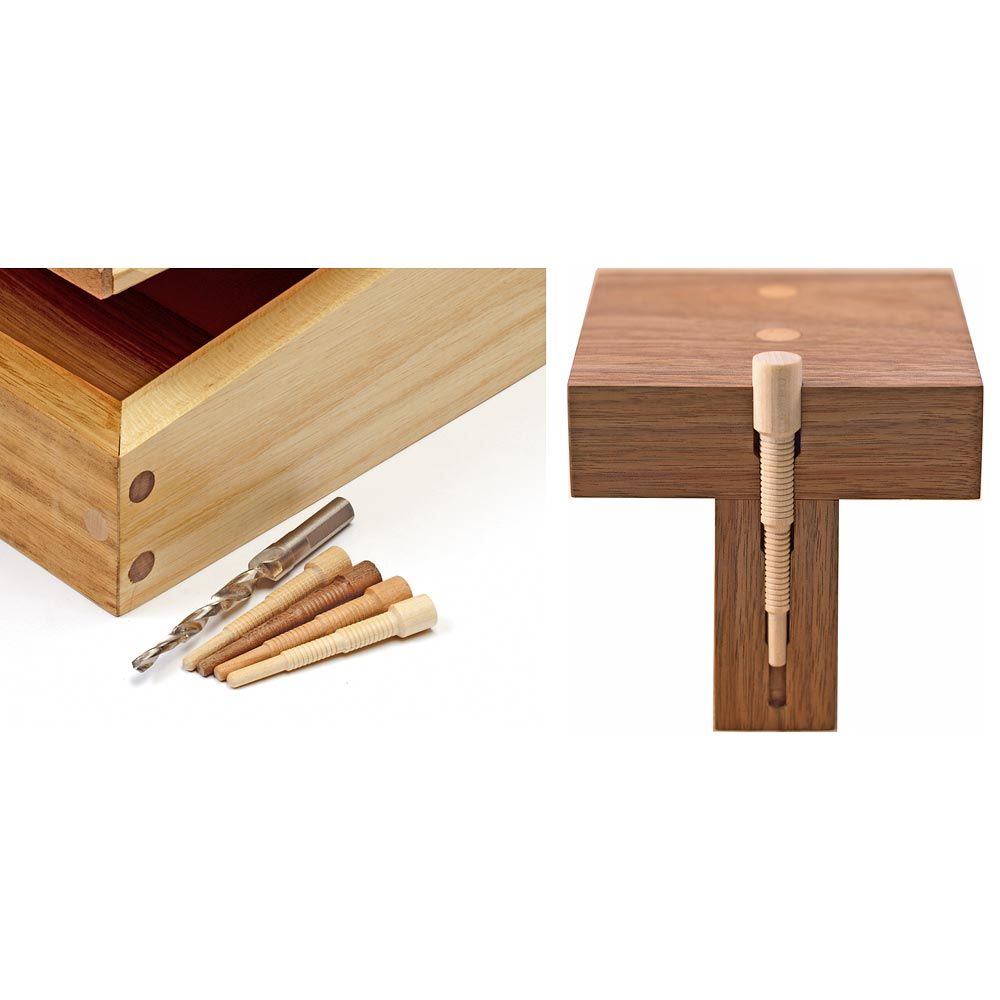

Further packs of dowels are available for each size in Birch, Cherry, Oak or Walnut. The innovative stepped and ribbed form of these dowels (or maybe they should be called wooden nails) keeps the glue where you want it, in the joint, without the problem of compression experienced in ordinary dowel joints. The ribs grip the sides of the stepped pockets as they swell with the glue to lock them in place.

The procedure is simple:
Clamp or hold together the pieces to be joined.
Drill the stepped hole with the Miller TruFit bit for the selected dowel size.
Spread a thin layer of glue (Titebond II is recommended) on the ribbed section.
Tap the dowel into the hole until fully seated.
Trim off and sand level - Miller dowels are self capping - so job done!
Please remember - good and accurate surface preparation of the mating surfaces is essential to the strength and neatness of the joint.

TOP TIP for an interesting effect, use a Miller Dowel which contrasts with the host timber.


Key Features

• Produce strong, secure joints with minimum fuss
• Simple method of producing long lasting joints
• Kits available in three sizes
• Birch Dowels
• Self-capping
• Ribs along length allow glue to adhere to material and dowel
• Drill bit supplied in initial starter pack
