Moore & Wright CSM Precision Combination Sets

The Moore & Wright CSM Precision Sets are supplied with a rule (graduated both sides), Protractor head, Square head and Centre head. The datum faces are fully hardened and ground to resist wear. There is a centrally mounted protractor vial allows unrestricted viewing and the protractor has full 360 ° scale plate, graduated 0 ° - 180 ° - 0 °. The protractor is also fitted with a satin chrome scale plate.

The precision rules have been fully hardened and tempered with deeply etched graduations on both sides for ease of reading and long life. It has a unique rule clamp that allows positive location and clamping and a clipped corner on rule to maximise capability

Square Head offers the following fixed angles: 15 °, 30 °, 45 °, 60 °, 75 ° and 90 °.

Centre Head offers a fixed 90 ° angle, for finding the centre of round bar stock up to 120mm diameter.

MAWCSRM600 & MAWCSRME24 are rules specifically designed for use with the Combination Sets (MAWCSM300 & MAWCSME12).

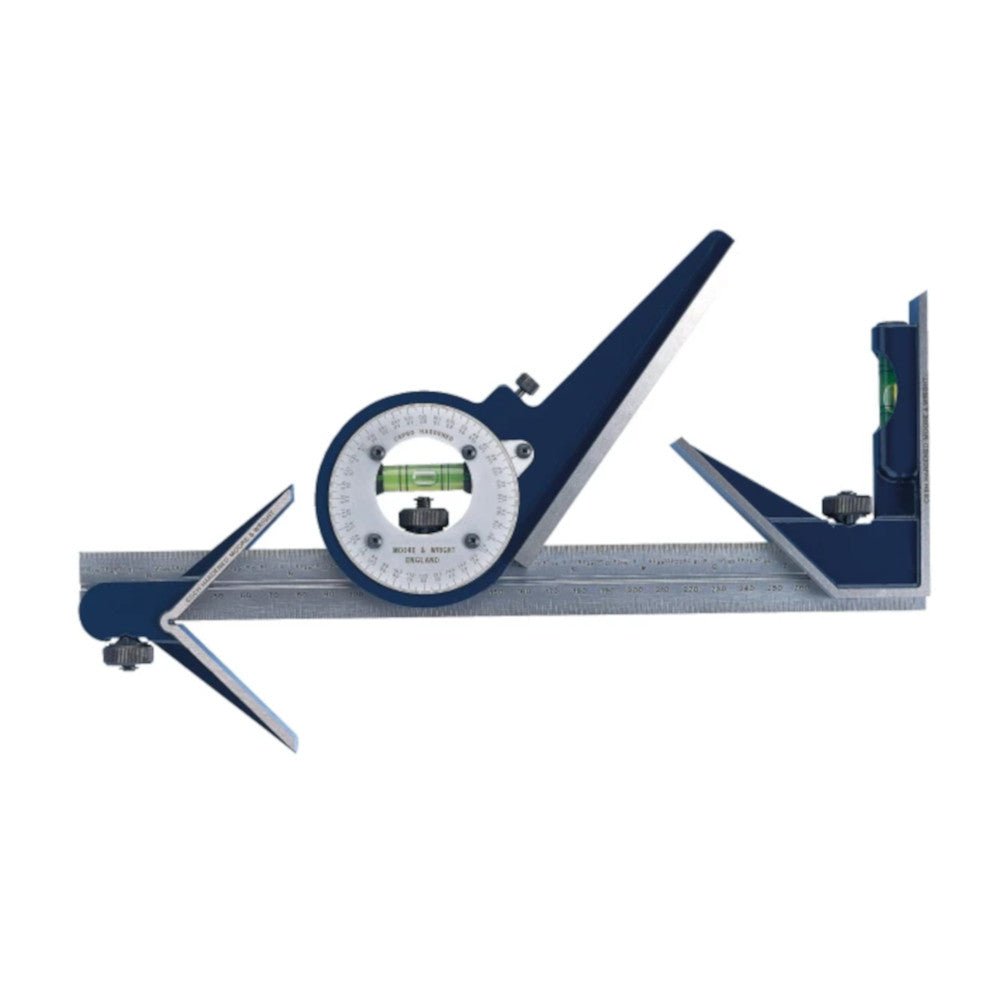

The Moore & Wright CSM300 Precision Combination Set is a full set including 300mm rule (graduated both sides), Protractor head, Square head and Centre head.

Metric
Measurements: mm and 0.5mm on both sides; numbered every 10mm.
Metric/Imperial
Measurements: Metric graduations: in 0.5mm, numbered every 10mm. Imperial graduations: 32nds and 64ths numbered every 1/8in.
