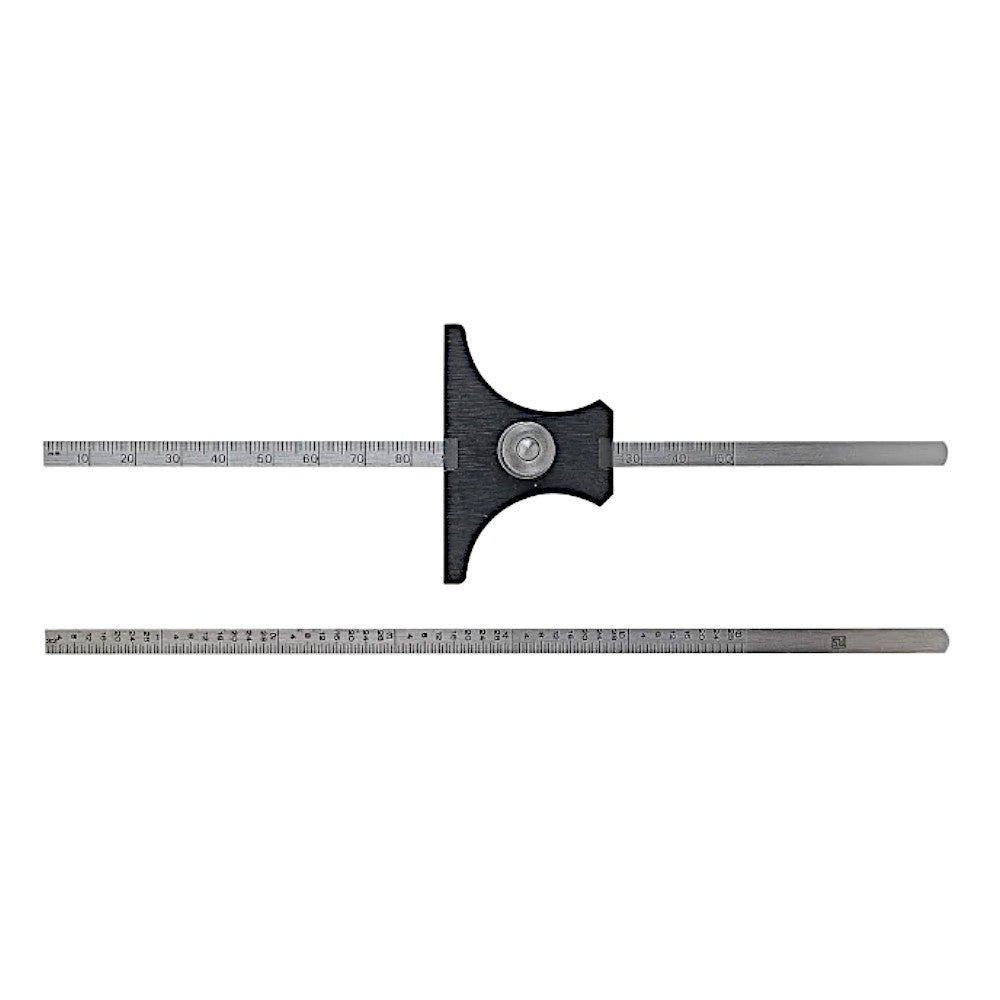

Moore & Wright Reversible Base Depth Gauge

The Moore and Wright Reversible Base Depth Gauges have accurately ground top and bottom faces to allow the base to be reversed perfect for use in confined spaces. There is a full range rule adjustment and the readings can be fixed by means of a lock nut. Rules are graduated on both sides.

The Moore and Wright 43M Reversible Base Depth Gauge has the following specification:

Size of Base: 18/56mm.
Width: 5.5mm.
Thickness: 1.0mm.
Length of Blade: 195mm.

Metric Scale Graduations : Front Face: 0.5mm and 1.0mm, Rear Face: 1.0mm.
