PROXXON

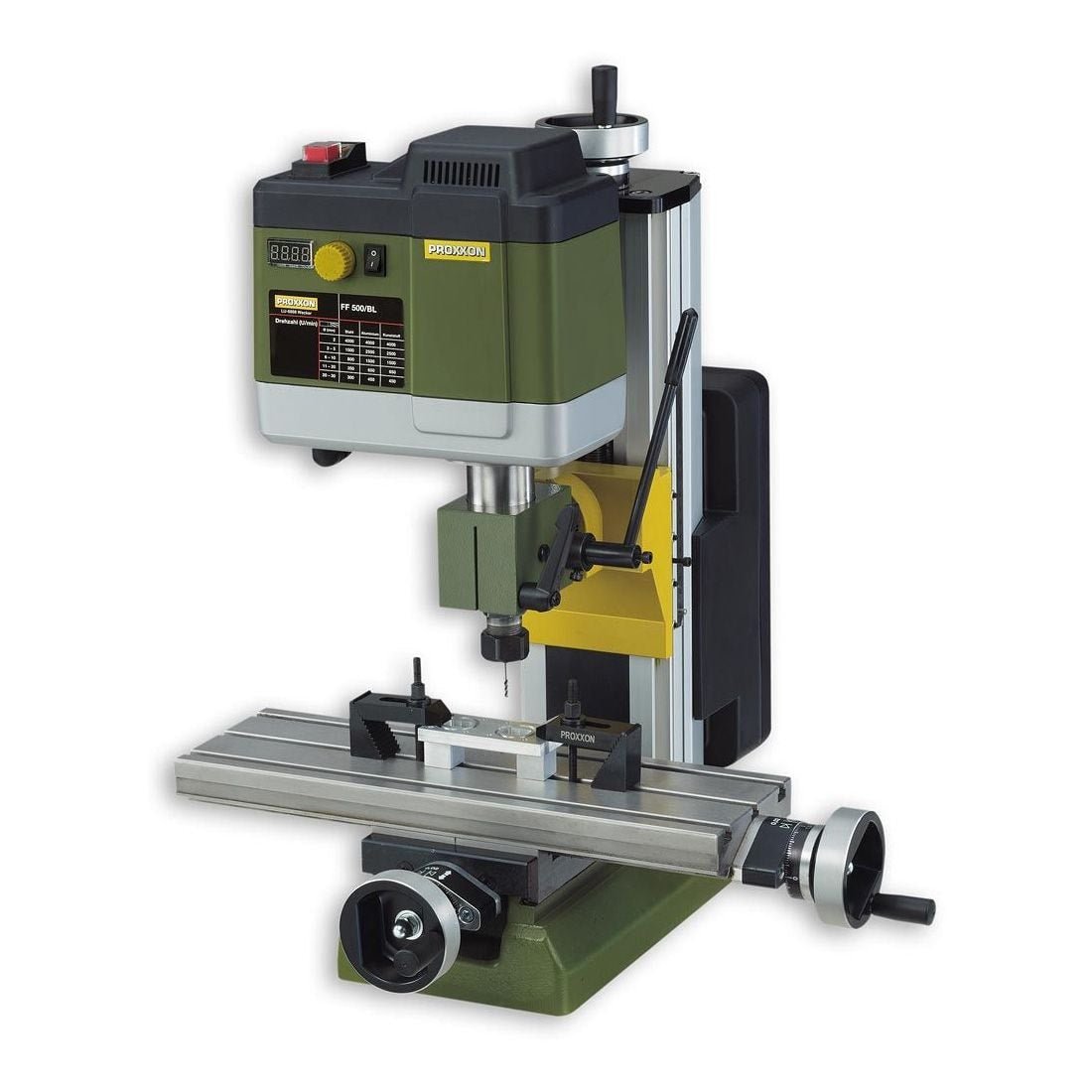

Proxxon Micro Miller FF 500/BL

SKU: PX102371

Proxxon Micro Miller FF 500/BL

Regular price £2,158.80 GBP
Regular price Sale price £2,158.80 GBP
Sale Sold out
Shipping calculated at checkout.

The FF 500/BL features the latest technology with a brushless direct drive. It is quiet and vibration-free in use with high precision. It boasts a wide speed range, variable from 200 to 4,000rpm, with a clear four-digit display. Electronic speed control and speed sensors guarantee high torque when using large milling cutters at lower speeds. The solid column has dovetail slide ways with adjustable jib strips for smooth operation and zero play. The milling head can be angled both left and right by 90 degree either way. The spindle sleeve is lockable and pre-machined should you wish to fit the optional fine feed. The spindle uses ER20 collets guaranteeing trouble-free tool holding and maximum potential. The FF 500/BL includes four ER20 collets (6, 8, 10 and 12mm). Turning a hand wheel on top of the main column adjusts the head height (Z axis). All three hand wheels (X, Y and Z axes) have adjustable scale rings. One revolution is equal to 2mm, with coarse divisions of 0.1mm and fine divisions of 0.02mm. The solid plane-milled steel compound table features three MICROMOT standard T-slots.

Key Features

  • Quiet, vibration-free brushless direct drive, high torque at low speeds
  • Variable speed 200rpm to 4,000rpm for wide range of applications
  • Solid plane-milled table in steel (400 x 125mm) with three T-slots
  • X, Y and Z axes hand wheels with coarse and fine divisions
  • Very accurate European made machine
  • Supplied with 4 x ER20 collets (6, 8, 10 and 12mm)



Available to Order - delivery time is approximately 3 weeks

Specification

Diameter of Column 120 mm x 100 mm
Head Tilt 90 ° - 0 ° - 90 °
Lateral Table Movement 100 mm
Longitudinal Table Movement 310 mm
Nett Weight 47 kg
Nose of Spindle to Table [Max] 220 mm
Overall L x W x H 750 mm x 550 mm x 550 mm
Power 400 W
Rating Industrial
Spindle Speed 200 - 4,000 rpm
Spindle Travel 30 mm
Table Size 400 mm x 125 mm
Throat 125 mm
Voltage 230 V
