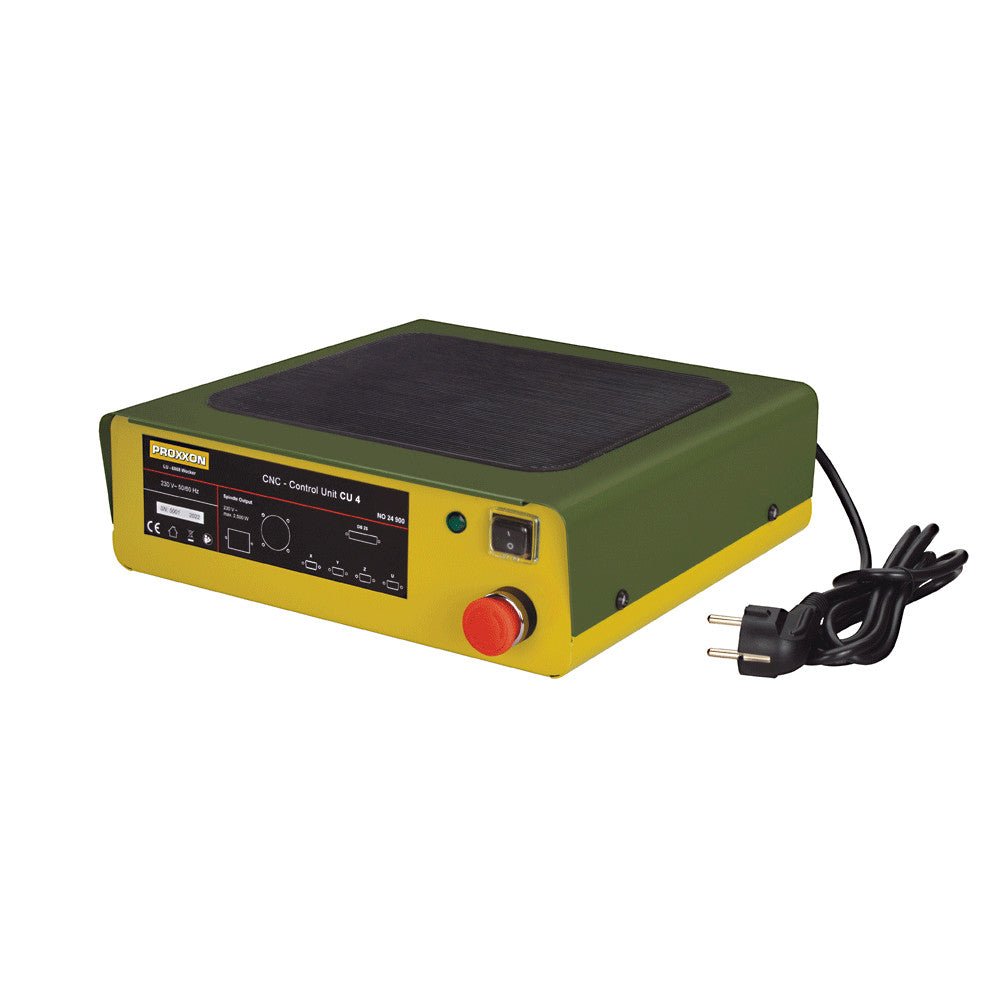

Proxxon Micromot CNC-Control Unit CU 4 - 24900

For operating CNC lathes and milling machines with up to four axes. Ready for use, powerful and safe.

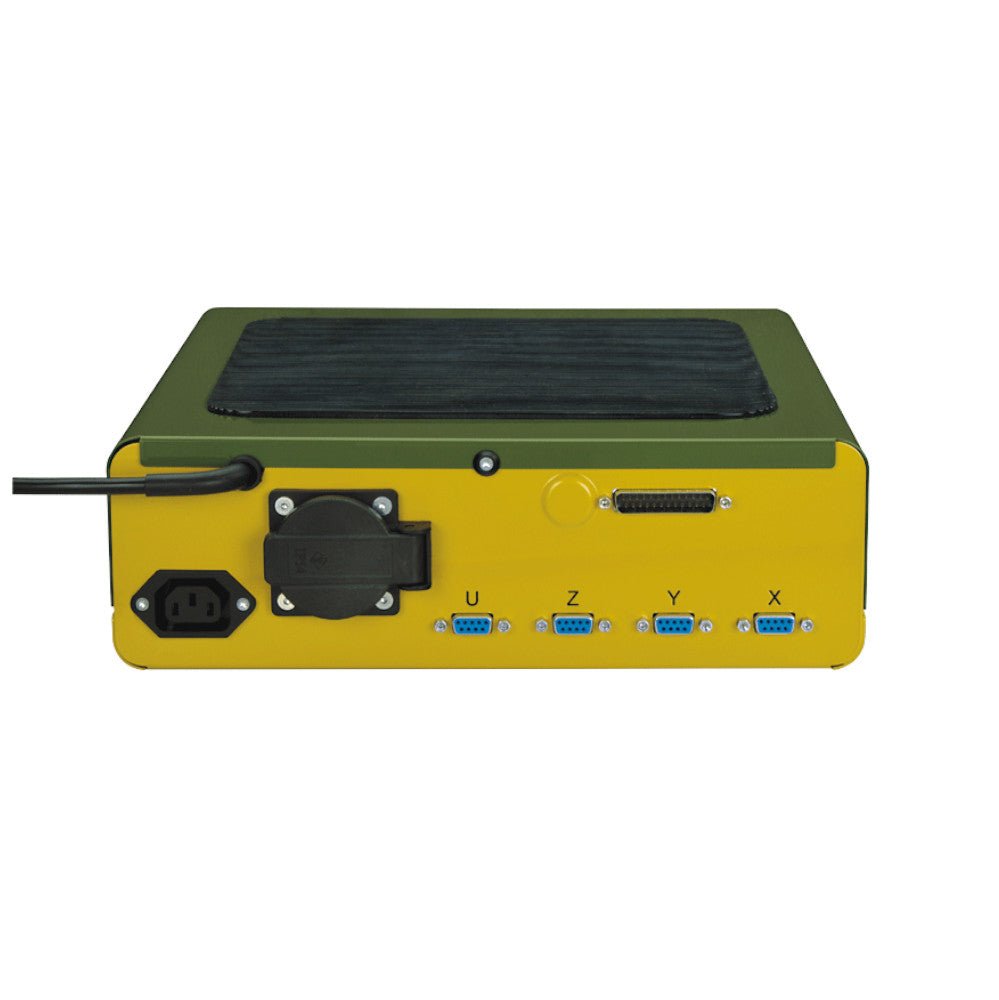

Free choice of CNC-software: e.g. MACH3/4 (milling or turning), Estlcam (milling) may be used for operation via parallel-port (if necessary with use of LPT-adaptor). Four powerful micro step drivers (norm-interface SUB-D 9-pole) always provide enough energy for any machining processes. One feedback signal (e. g. limit switch) each for each axis.

Switching relay for 230V-outlet (IEC-socket and protective contact socket) for spindle powering or special functions up to 2,500W.

Solid main housing made of 1.2mm steel plates (powder-coated) with large grooved rubber mat for tool storage.

Technical data:
230V. 50/60Hz.
Dimensions 330 x 300mm.
Height 100mm.
Weight approx. 4.5kg.
Insulated to class 1
