Proxxon Micromot

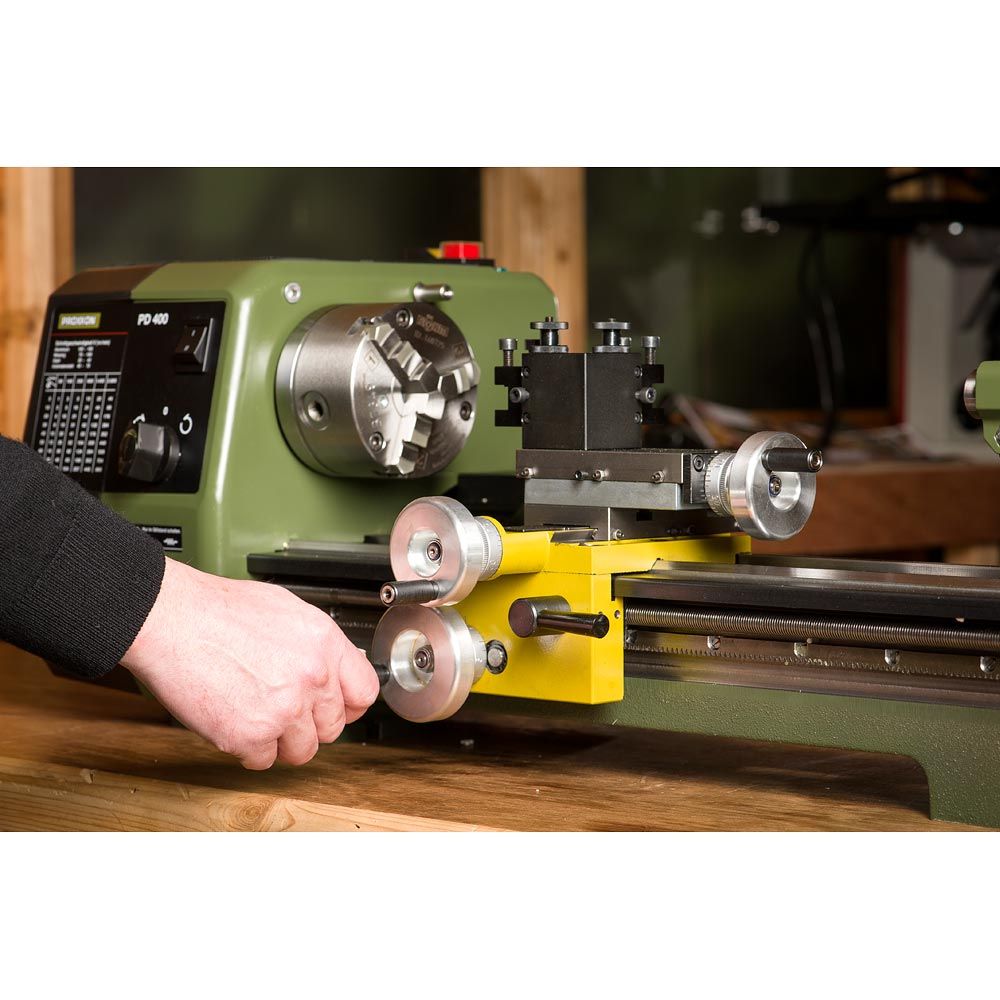

Proxxon Micromot PD400 Precision Lathe

SKU: TS474027

Proxxon Micromot PD400 Precision Lathe

Regular price £2,599.00 GBP
Regular price Sale price £2,599.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

The PD 400 lathe is the heart of a multifunctional, expandable system, and is unequalled in its class.
Made in Germany, this lathe is ideal for straight and cross-cuts, taper turning, internal and external thread cutting and slotting, and is usable on materials such as steel, non-ferrous metals, aluminium and alloys.
Even under heavy loadings, the solid precision of this machine demonstrates negligible tolerances. There is a wide range of accessories to complement the lathe's functions.
The bed comes already equipped with a milled and tapped base surface for securing the PF 400 Mill/Drill unit.
With a comprehensive gearbox, the PD 400 is suitable for cutting threads in 19 steps from 0.2mm to 0.3mm. The belt options are clearly positioned and easy to change.
Included as standard is a 100mm Rohm precision feed chuck, a tool post and two tool holders with individual stop and height adjustable, live rotating MK2 centre and tail stock chuck.
A cross-braced cast iron bed gives this lathe its stability; its wide legged shape has prism slides for the apron and the tail stock. A two speed auto-feed facility is included on a protected lead screw with a 12mm x 1.5mm Acme thread.

Technical Data:
Centre distance 400mm, centre height 85mm. The swing over the top slide is 116mm. Solid, ribbed bed is made of quality cast iron with ground and hardened slide ways. Over sized spindle with two adjustable taper bearings, 3MT taper and 20.5mm bore. Run-out, without chuck is 0.005mm.
The precision 3-jaw chuck has a capacity of up to 100mm. Six spindle speeds are provided via belt drive: Level 1: 80 / 330 / 1,400rpm; Level 2: 160 / 660 / 2,800rpm. Powerful, quiet capacitor motor with 550W output. All adjusting wheels fitted with scales that may be zeroed. 1 division = 0.05mm. The auto-feed has a speed of 0.07 or 0.14mm/rev.
An integrated gearbox with change gears provides 19 pitches: 0.2 - 0.25 - 0.3 - 0.35 - 0.4 - 0.45 - 0.5 - 0.6 - 0.7 - 0.75 - 0.8 - 0.9 - 1.0 - 1.25 - 1.50 - 1.75 - 2.0 - 2.5 - 3.0mm. Imperial threads of 10 - 48 tpi are also possible. A rotating centre 2MT and 10mm 2MT gear chuck are included. Cross slide travel 85mm and top slide 55mm. Swivels through 45 ° for taper turning. Tail stock with 2MT (short), spindle travel 40mm and a diameter of 24mm. Supplied with scale. Approximately size 900 x 400 x 300mm. Weight approximately 45kg. For cutters of 10 x 10mm.

Key Features

  • Supplied with change gears for thread cutting in 19 steps (0.2 - 3.0mm)
  • Cross-braced cast iron bed with wide, ground slide ways
  • Powerful capacitor motor with 550W output
  • Main switch with emergency stop function and restart protection
  • Quality, precision 3 jaw chuck with 100mm capacity
  • Quick change tool post with 2 holders (fitted with adjustable height and stop)
  • Includes 2MT rotating centre in tail stock
  • Easy to use hand wheel of aluminium with adjustable scale of steel. 1 division = 0.05mm
  • Fully enclosed lead screw with Acme thread (12 x 1.5)
  • Hand wheel for quick support change
  • Switch for clockwise, off and counter-clockwise rotation
  • Selector for auto-feed

Specification

Centre Height 85 mm
Chuck Fitting Flange Mounted
Cross Slide Travel 85 mm
Distance Between Centres 400 mm
Headstock Taper 3 MT
Height Over Cross Slide 58 mm
Nett Weight 45 kg
Overall L x W x H 900 mm x 400 mm x 300 mm
Rating Trade
Spindle Bore 20.5 mm
Spindle Speed 80 - 2,800 rpm (6)
Tail stock Ram Travel 40 mm
Tail stock Taper 2 MT
Thread Pitch Range 0.2 mm - 3.0 mm / 10 tpi - 48 tpi
Tool Shank Size 10 mm
Top Slide Travel 55 mm
Voltage 230 V
