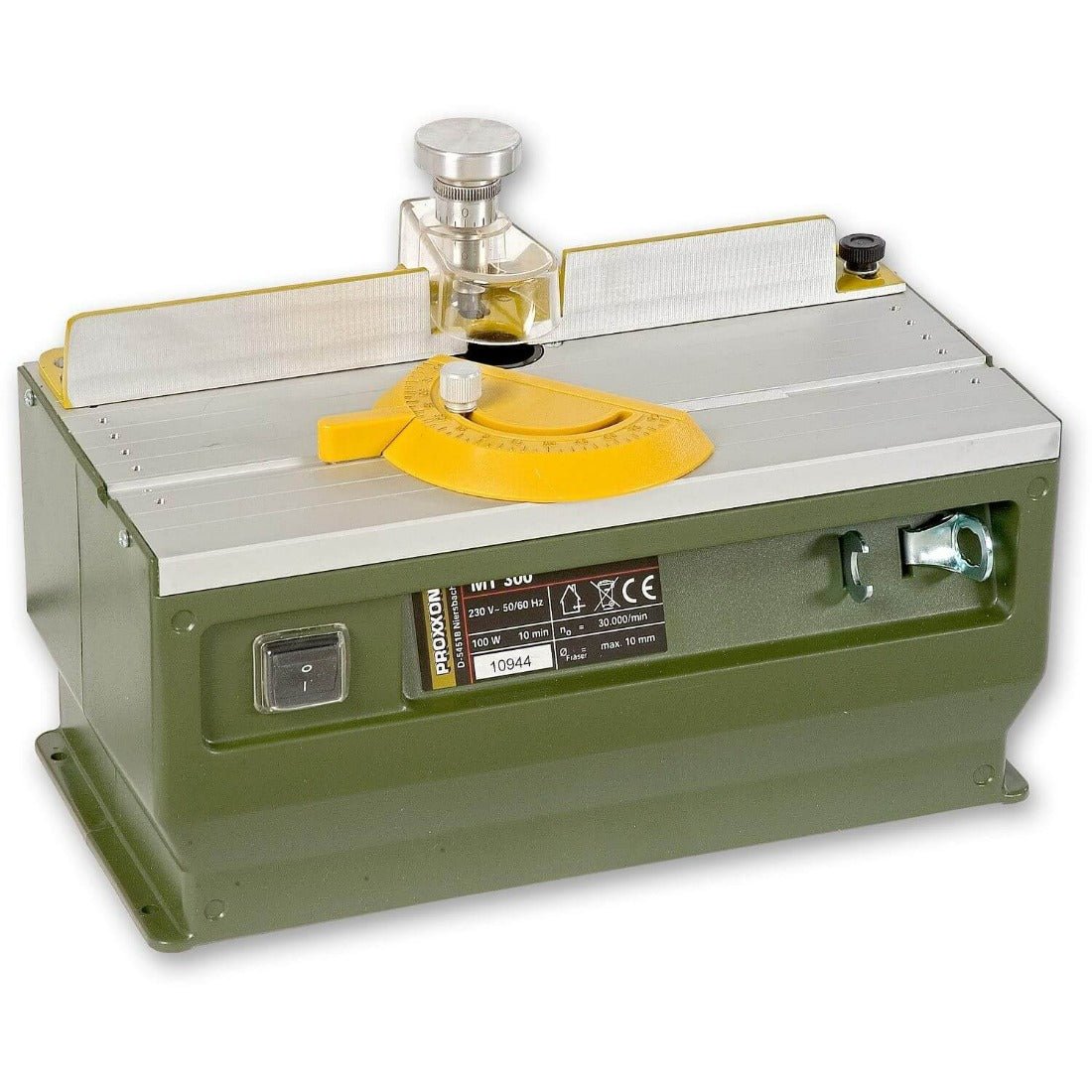

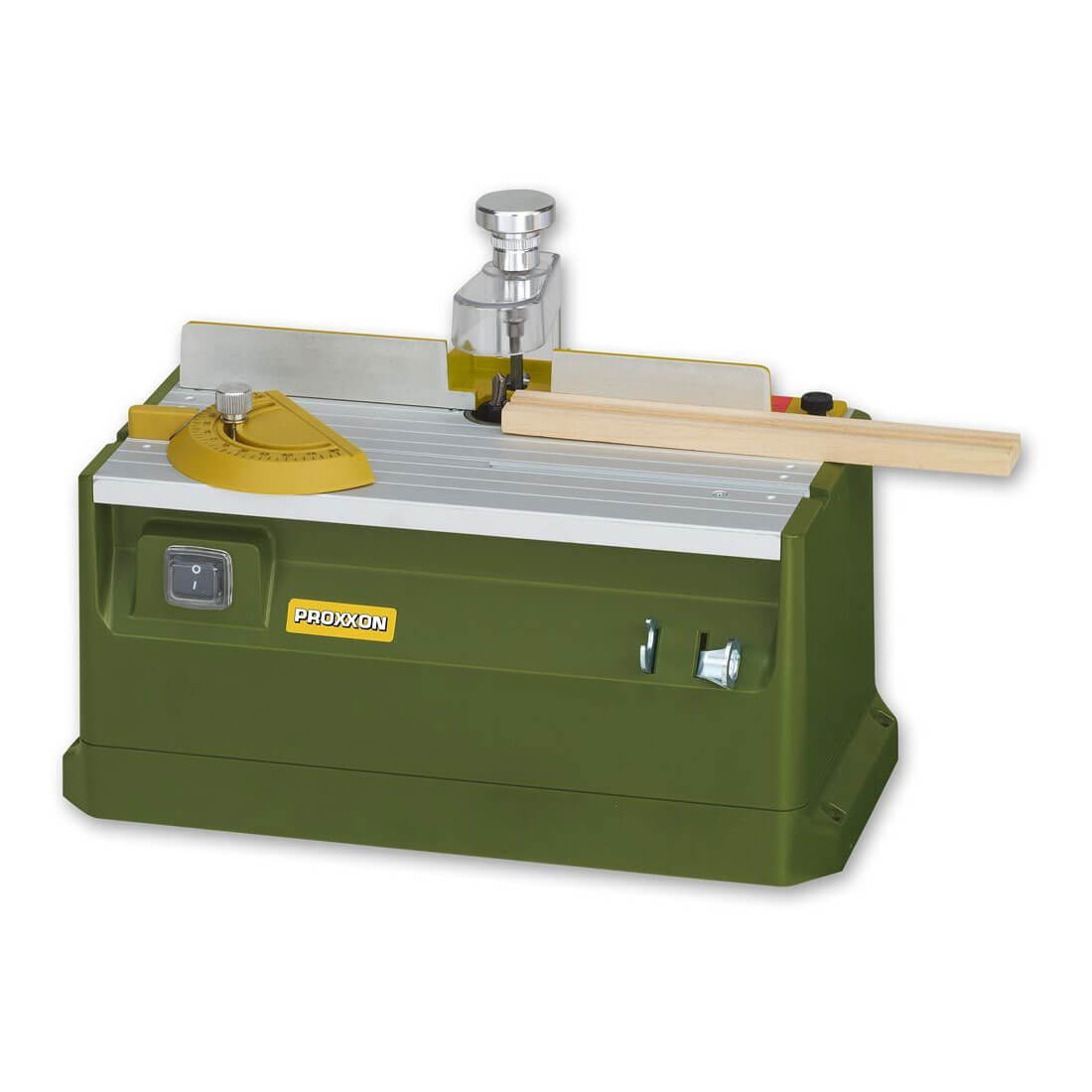

A cross between a router table and moulder/shaper in miniature. This machine is a self-contained unit using miniature router cutters, held in the collets 2.4, 3, and 3.2mm, to produce small detailed profiles used in dolls house, model making projects and similar precision work. Powered by a long-life 100W motor achieving 25,000rpm no load speed. The head is fully adjustable within a cutter guard/hold down, the incremental adjustment can be zeroed with one revolution equalling 1.0mm in height and one division on the scale equalling 0.05mm in height. Measuring 300 x 150mm the table is a generous well made surface supporting a full length parallel fence and slotted for the mitre fence or any jigs or sub-tables you might want to traverse across the cutter. Dust extraction is essential with this unit via the 37mm outlet provided and which is suitable for connection to a standard vacuum cleaner.
Key Features
- Self contained unit using miniature router cutters
- Designed to produce small detailed profiles used in dolls house and model making projects
- Head is fully adjustable within a cutter guard
- Comes with adjustable fence and mitre fence, plus 2.4, 3 and 3.2mm collets and tools
Specification
Cutter Speed | 25,000 rpm |
---|---|
Dust Extraction | 37 mm Outlet |
Motor Power | 100 W |
Nett Weight | 2.0 kg |
Rating | Hobby |
Table Size | 300mm x 150mm |
Voltage | 230 V |
