Proxxon Micromot Automatic Universal Axial Feed AV/E

 *Available to Order - delivery time is approximately 3 weeks.*

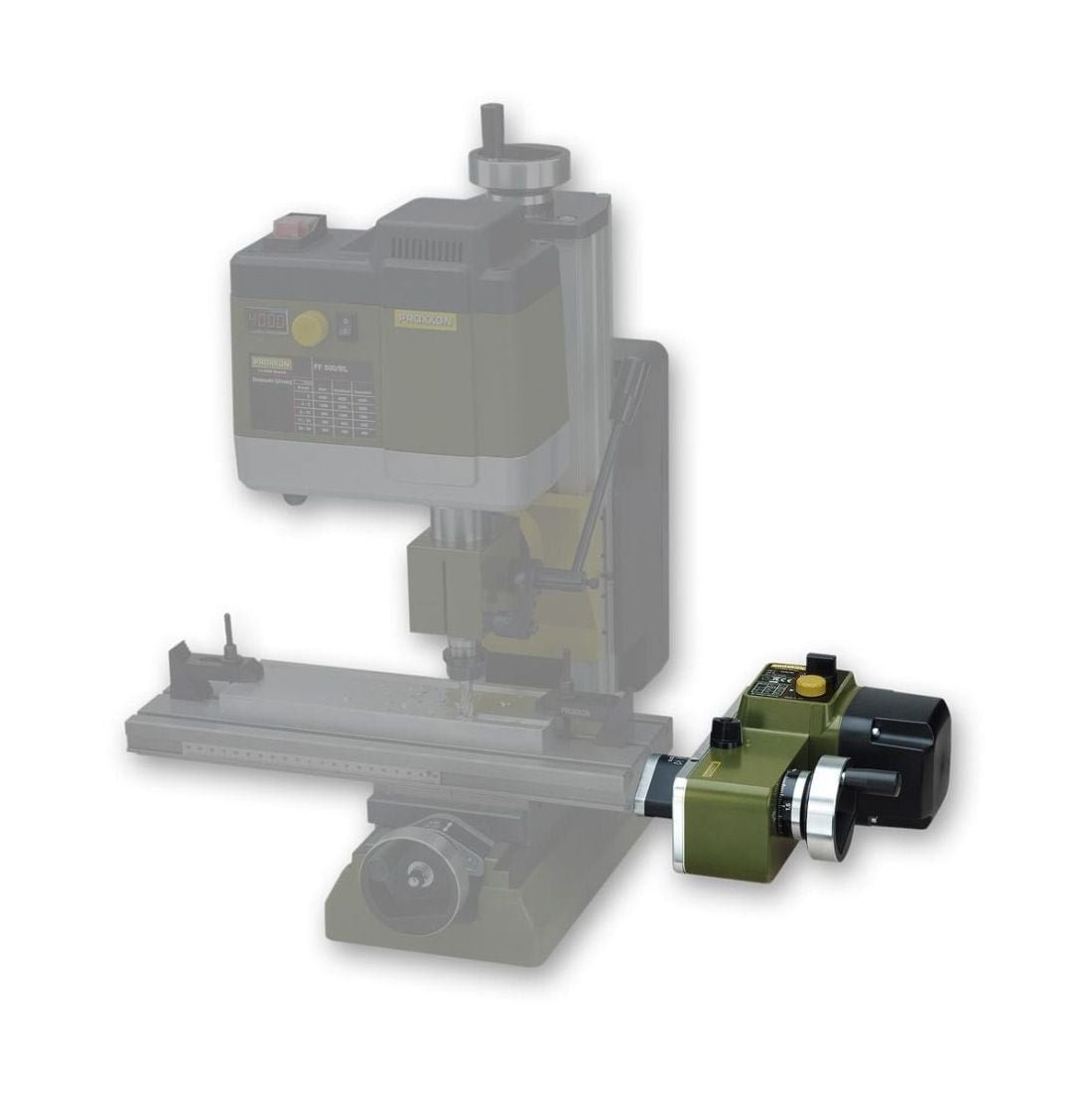

The Automatic Universal Axial Feed AV/E fits onto the X-axis of the FF 500/BL Mill. It will also fit the KT 400 Compound Table and the FF 400 Mill.

Assembly is simple, with just two bolts to attach the feed to the X-axis of the compound table. A balanced special 100W DC motor with electronic speed control (full-wave electronics) drives the feed from 10 to 130rpm. It offers two variable speed ranges: 20 to 75 mm per minute for general work and 90 to 260 mm per minute for machining at higher speed. For manual operation, mount the hand-wheel onto the spindle of the drive-axis.

Dimensions: H x W x D 120 x 170 x 210mm, weight: 3.5kg.

Key Features

• Automatic power feed for controlled milling
• Fits onto the X-axis of the FF 500/BL Mill
• Also fits KT 400 Compound Table and FF 400 Mill
• Simple assembly and setup
• DC motor with electronic speed control
• 2 speed ranges; general work or high speed machining
