Sjobergs Smart Workstation ProSKU: SJ105020
Sjobergs Smart Workstation Pro

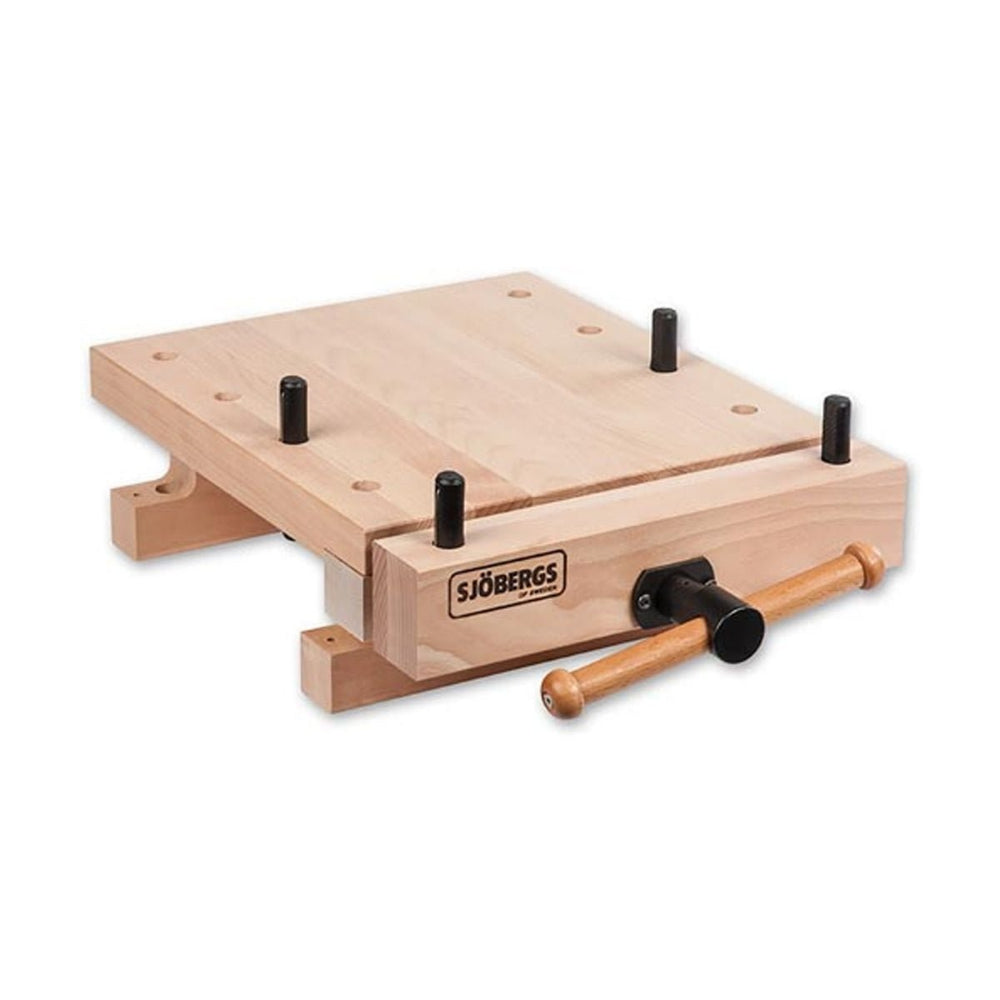

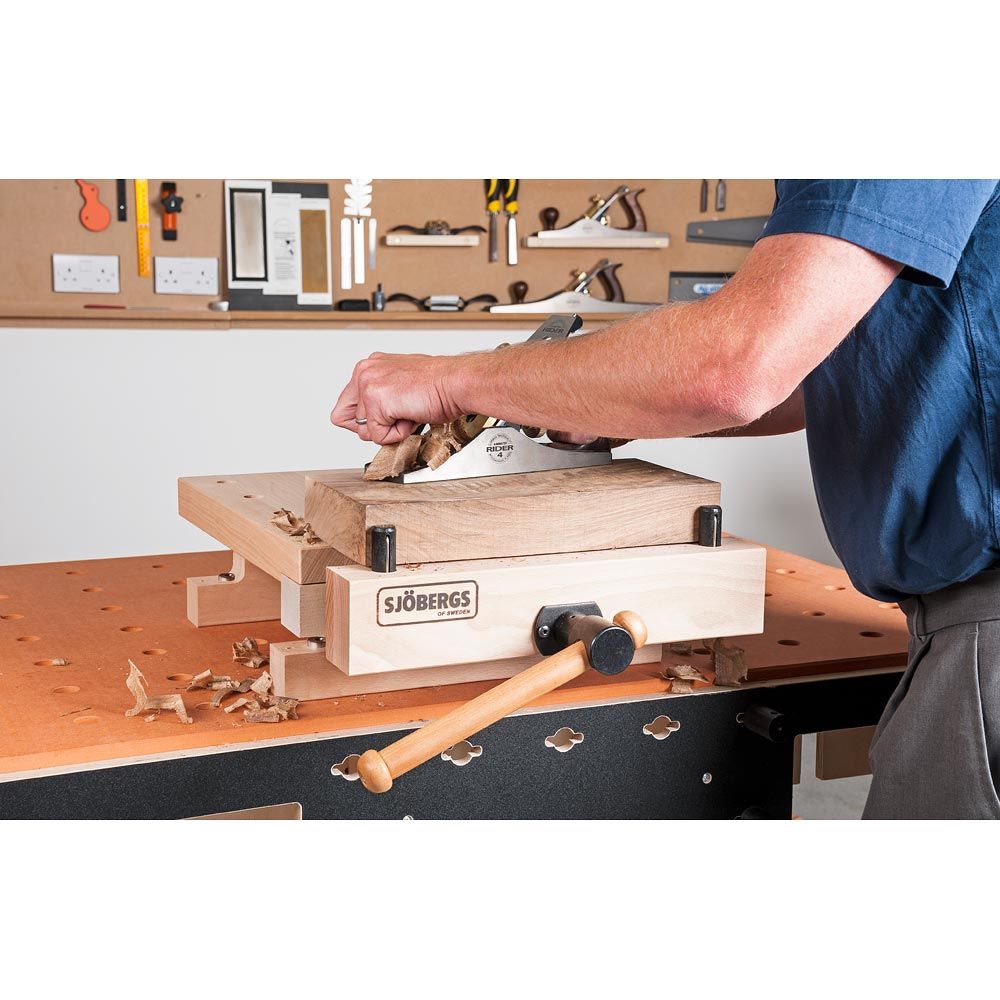

If space is tight or you are out on site, the Sjobergs Smart Workstation Pro is a brilliant work holding solution. You can clamp it to a table, worktop or any firm surface. The Smart Workstation Pro offers many of the benefits you would have with a full size workbench but in a portable and space saving package. It is ideal for woodworking, woodcarving and work holding in general.
Build quality is exceptional, with knot-free European beech used throughout. It has a 400 x 360 x 41 mm thick solid worktop. The 400mm wide vice opens to 115mm. The vice, the 4 bench dogs and a double row of dog holes solve many work holding challenges. The spring-loaded bench dogs can accommodate curved objects. The maximum width of board you can grip between the dogs is 480mm. The vice is the same model used by Sjobergs on many of their full size benches. It has a solid steel screw thread and twin guide bars. The Smart Workstation Pro will accept other Sjobergs accessories. There are holes pre-drilled through the feet for fixing the Workstation Pro permanently in place.
Self-assembly, so a Torx T20 screwdriver will come in handy (not included). Tip: al33-ugh pre-drilled, rubbing the screw threads with a candle makes screw driving easier.

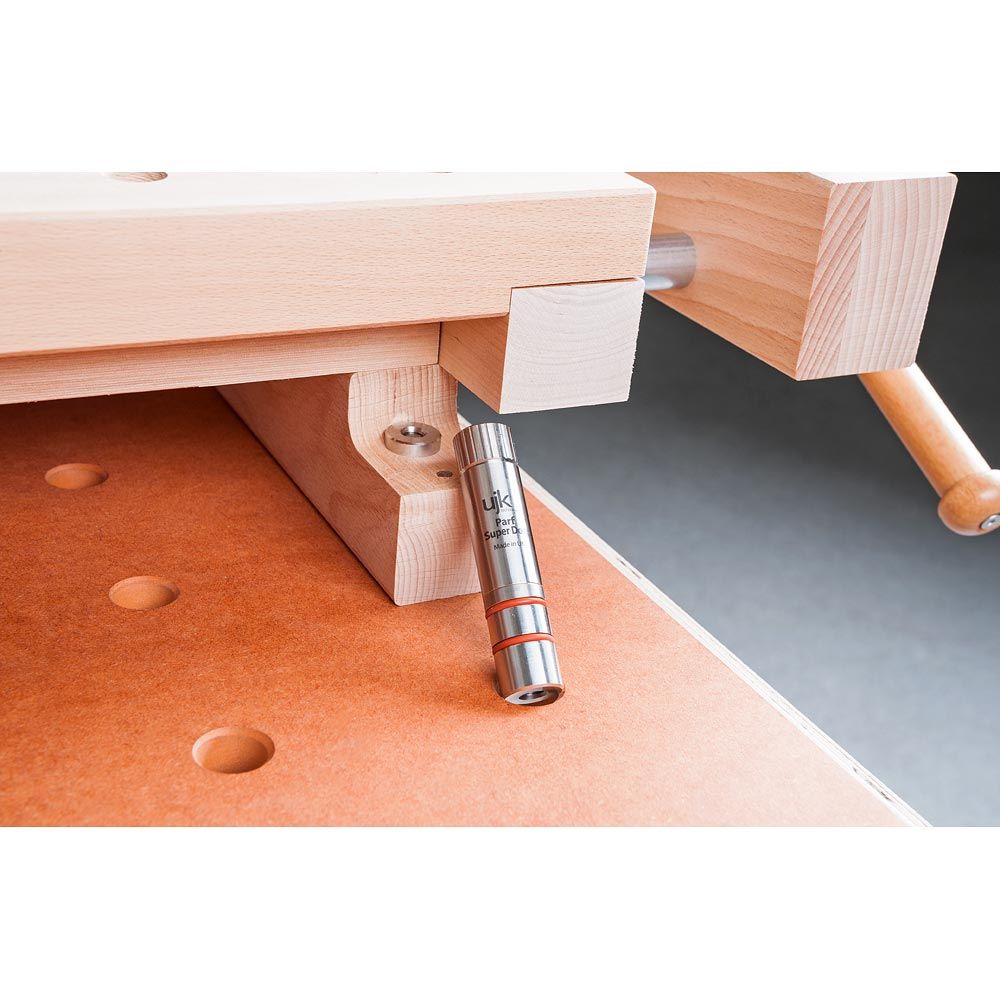

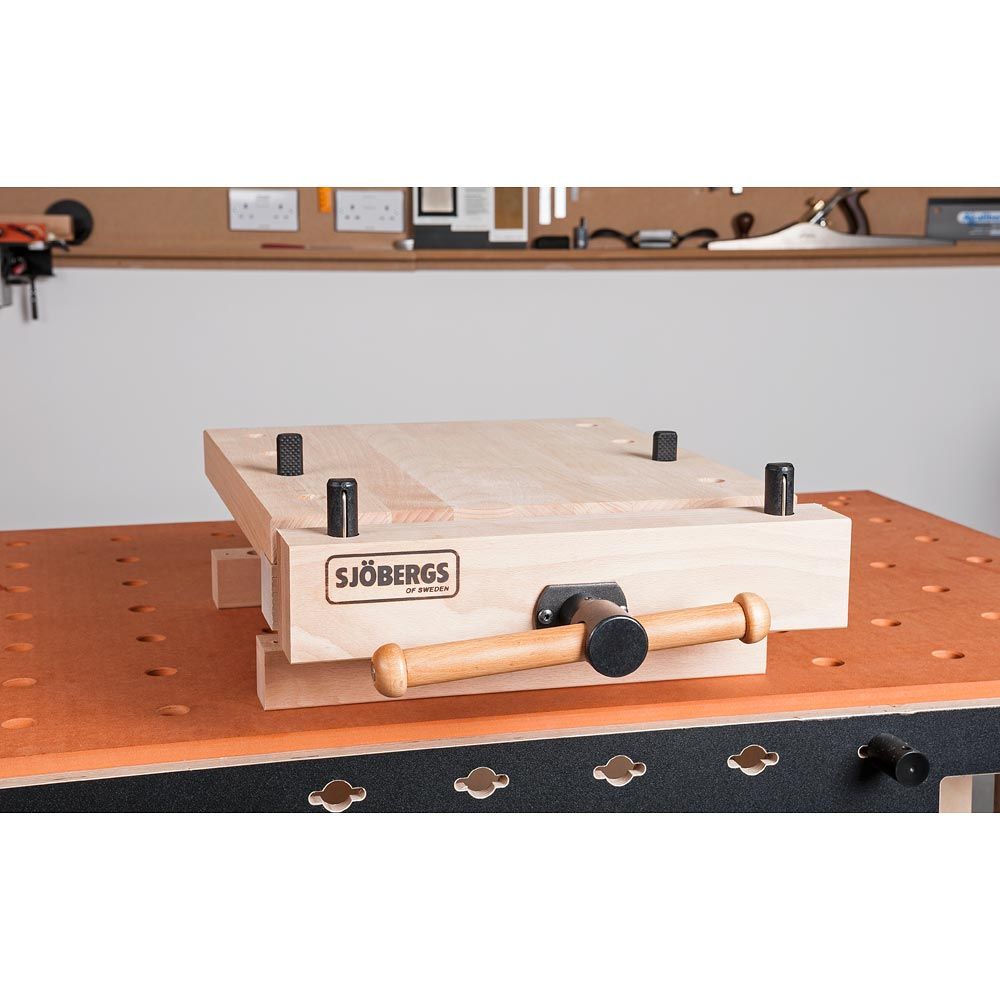

The feet also feature 20mm holes on 288mm centres, and coincidentally these align perfectly with the holes of a multifunction workbench. By carefully assembling the Smart Workstation Pro, you can also get the front and back feet to line up. Once done you can drop the Smart Workstation Pro onto 4 Parf dogs or UJK Technology Parf Super dogs, adding yet another option to your multifunction workbench.
- Ideal where space is tight or out on site
- Portable, space saving, effective work holding
- Knot-free European beech for strength and solidity
- Clamps onto tables, worktops or any firm surface
- 400 mm wide vice opens to 115 mm
- Double row of bench dog holes
- 4 bench dogs included
- Self-assembly required
|Specification for Sjobergs Smart Workstation Pro:|
|Jaw Opening||115 mm|
|Model||Smart Workstation Pro|
|Table Size||400 mm x 360 mm|
Taking care of your Sjobergs workbench!CONGRATULATIONS ON YOUR CHOICE OF A WORKBENCH FROM SJOBERGS! If you take proper care of it, it can be used for generations. Here is some advice to ensure that your bench works to your complete satisfaction.
HERE ARE SOME POINTS TO KEEP IN MIND!
FOR THE GUARANTEE to be valid and for a longer life of your workbench, all movable parts must be greased with tallow and adjusted regularly.
Melt the tallow in a pan or use an immersion heater. Use a brush for greasing, see illustration.
Your workbench must not be handled abnormally or stored in damp surroundings.
A bench with a shoulder vice is equipped on the underside with 2 adjustment options. One can be used to prevent too much play at the shoulder vice mounting point and the other is for vertical adjustments of the shoulder vice slide. Use these when applicable.
Providing the bench with jaw protectors to both shoulder and front vice protects the bench.
Check that all bolts have been tightened. A bolt which isn't tight can in time cause fractures of the glued sections.
