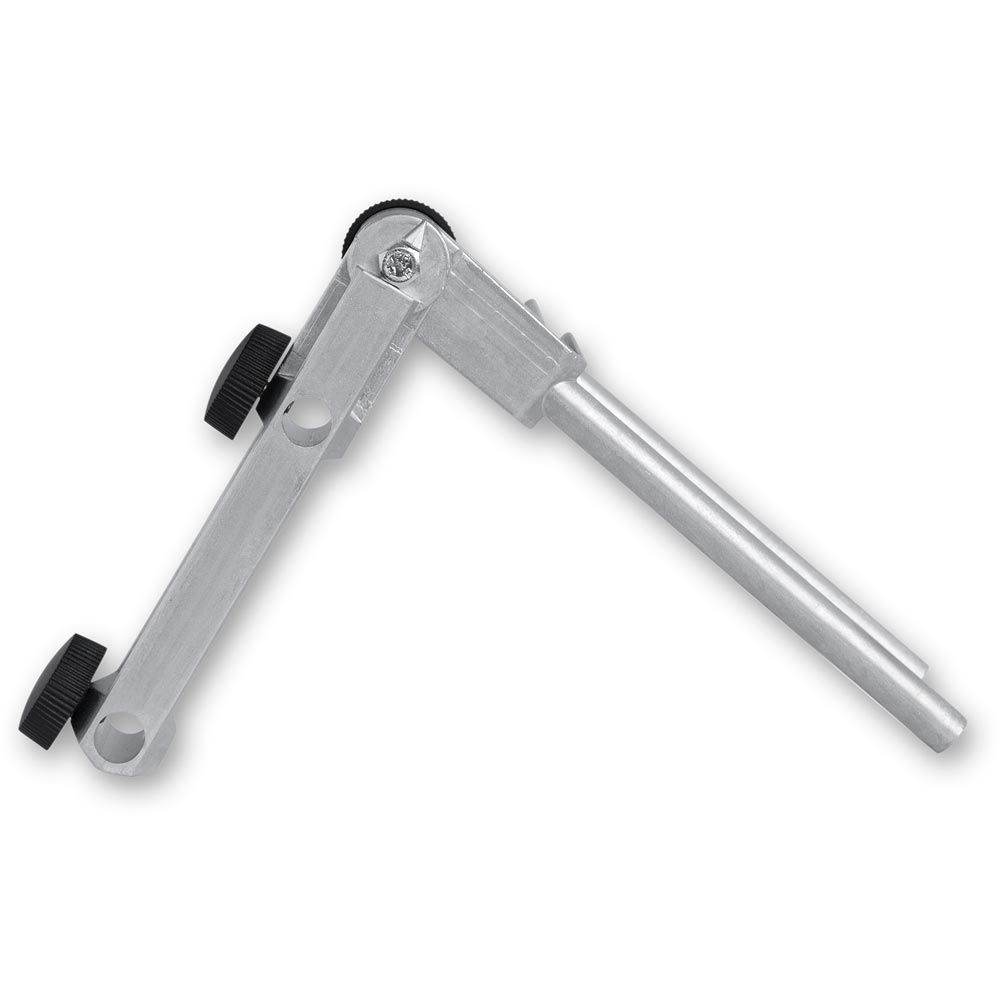

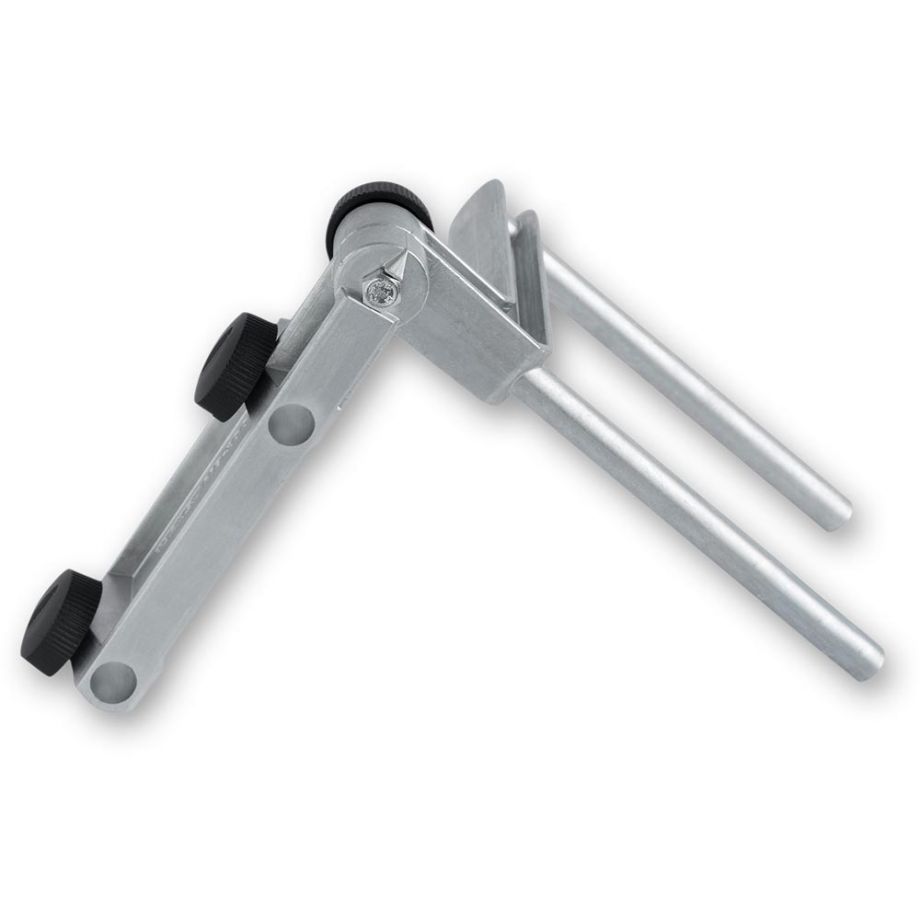

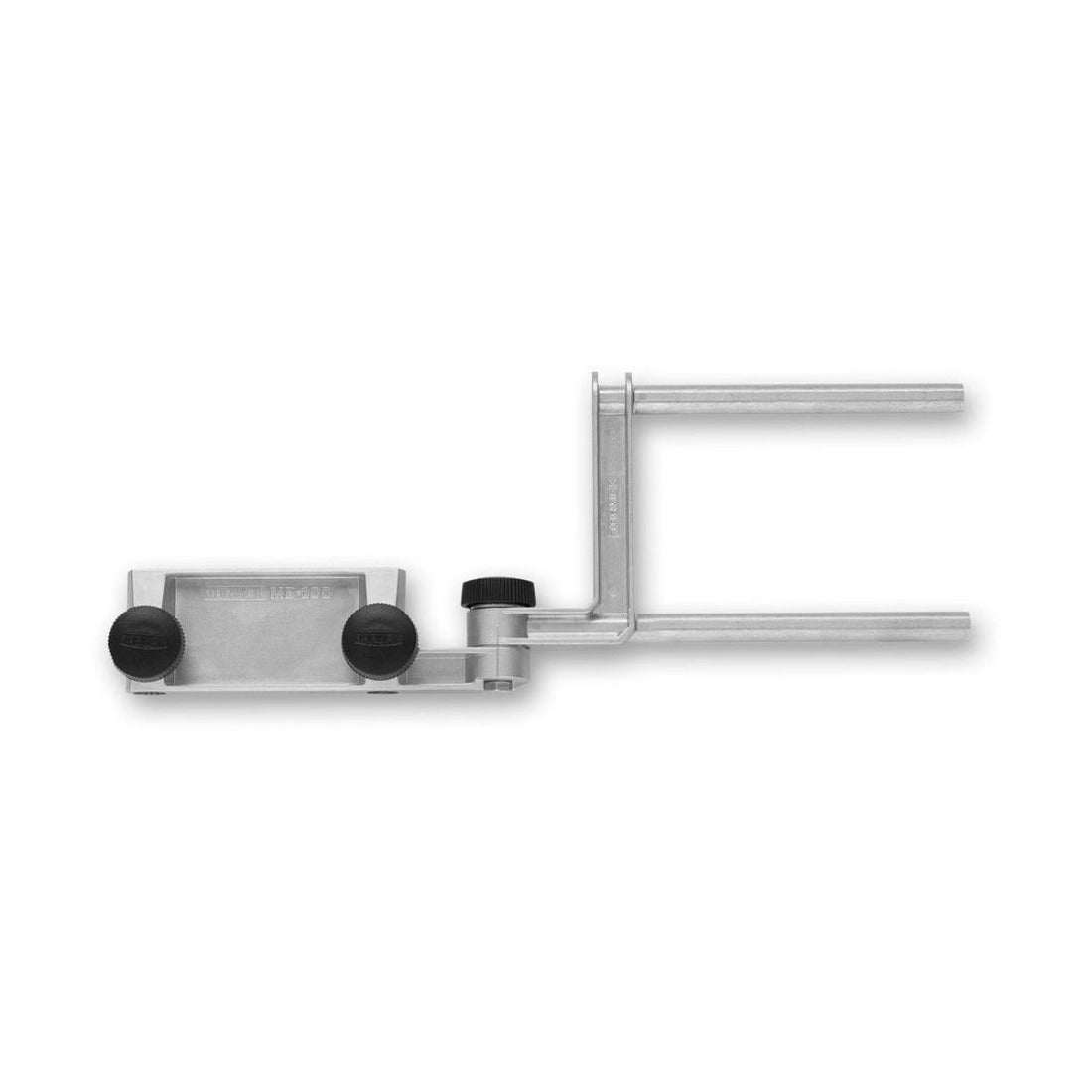

Tormek MB-102 Multi Base

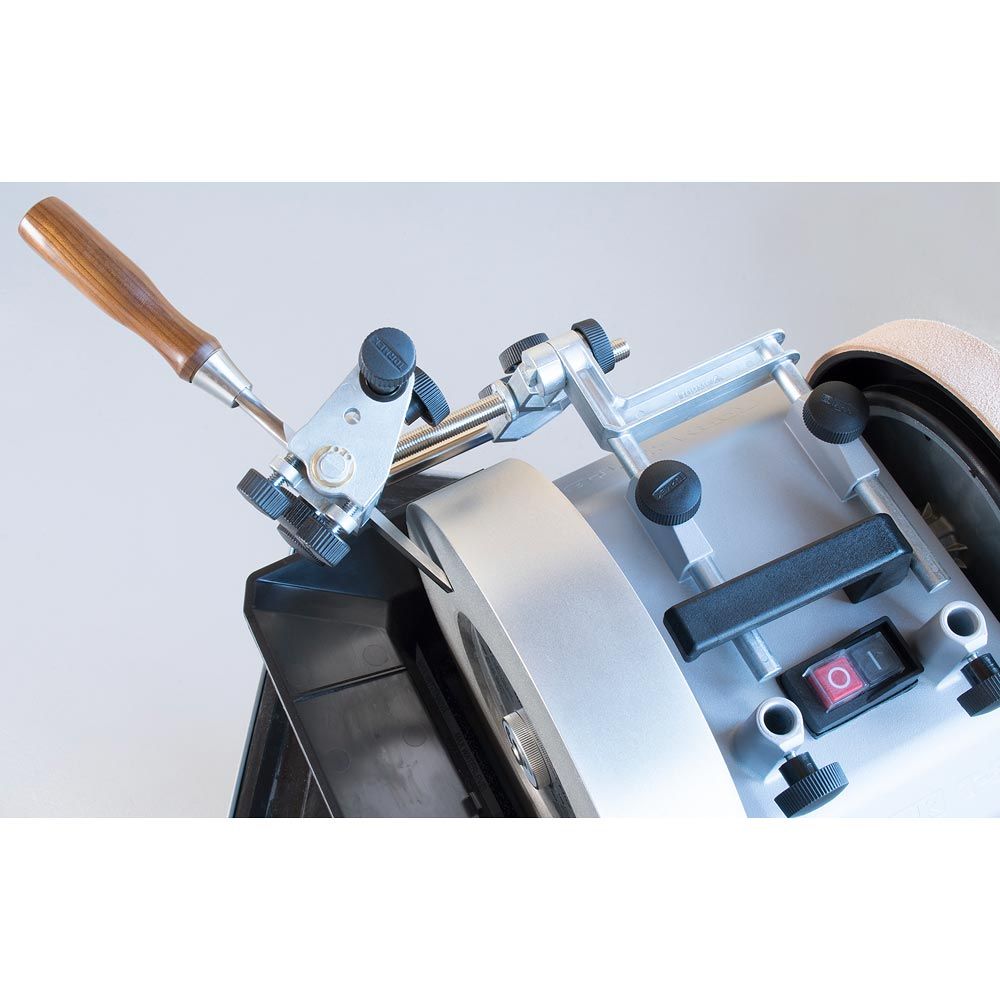

The MB-102 multi-holder is specific to the Tormek diamond-grinding wheels. It gives you the option of sharpening, using the side of the Tormek diamond grinding wheel to produce a completely flat bevel on chisels, plane irons etc. The MB-100 has an adjustment line for setting the correct sharpening position based on the angle required for each particular tool or jig. You can mount the MB-102 either vertically or horizontally, whichever is most convenient for the item you intend to sharpen.

The Tormek MB-102 is compatible with the following Tormek Jigs: Knife Jigs SVM-45, SVM-140 and SVM-00, Axe Jig SVA-170, Scissor Jig SVX-150, Short Tool Jig SVS-38, Gouge Jig SVD-186, Multi Jig SVS-50, Square Edge Jig SE-77 and Tool Rest SVD-110.

Please note that the MB-102 is designed solely for sharpening with Tormek diamond grinding wheels. It is not suitable for other Tormek grindstones, as they have to be dressed, which is not possible on the side.

Key Features

• Specifically for use with Tormek diamond grinding wheels
• Allows sharpening on the side of the grinding wheel
• Produce a perfectly flat bevel on chisels, plane irons etc
